The

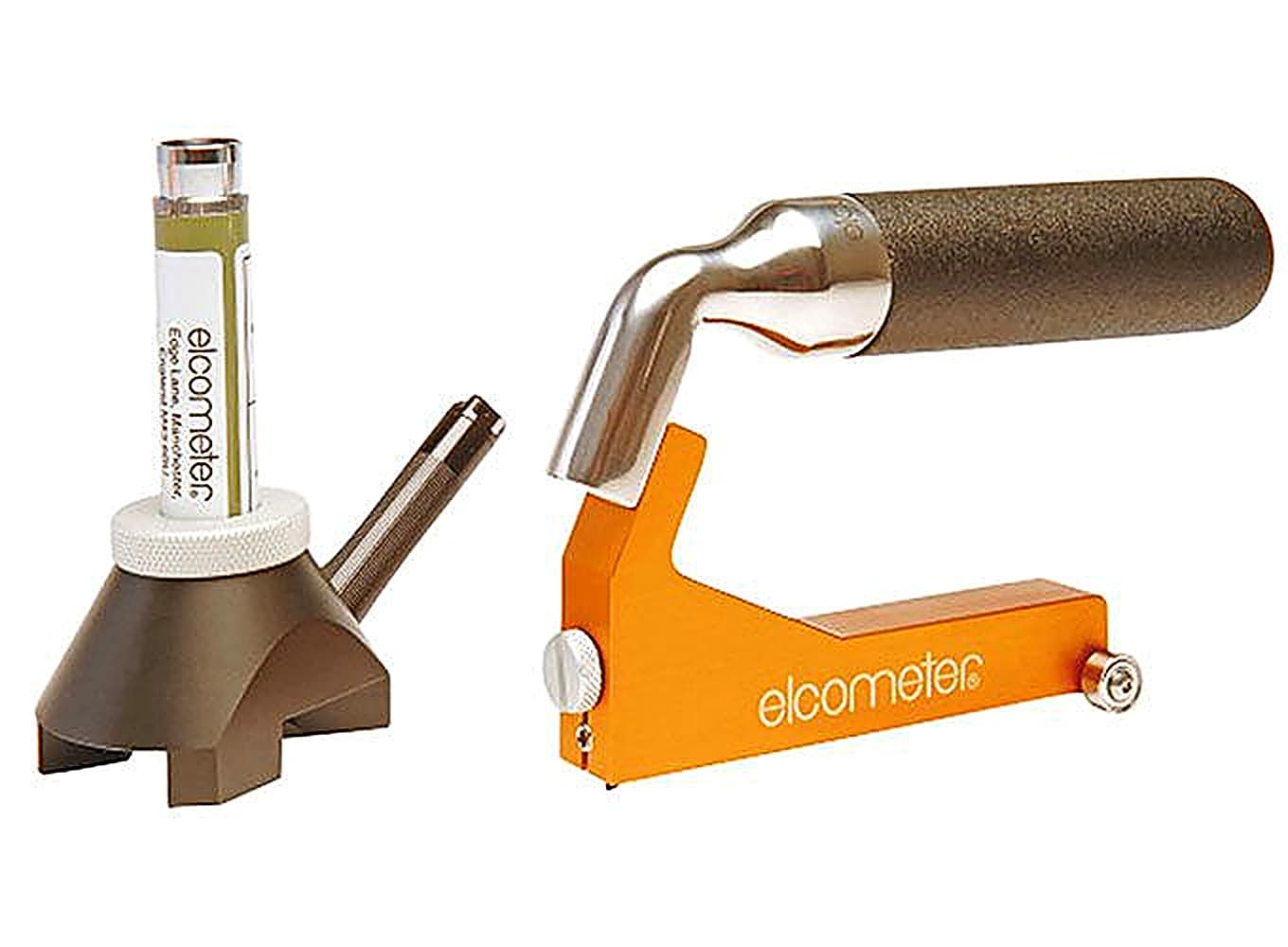

Elcometer 141 Paint Inspection Gauge (P.I.G.) provides a useful method for determining the paint thickness of both single and multiple layer coatings.
The Paint Inspection Gauge is ideal for use on metallic & non-metallic substrates such as wood, glass and plastics.
• Large easy grip handle – makes cutting thick or hard coatings easy
• Internal cutter storage compartment
• x50 magnification microscope
Elcometer 141 Paint Inspection Gauge can be used in accordance with:
• AS 1580.108.2
• ASTM D 4138-A
• BS 3900-C5-5B*
• DIN 50986
• ISO 2808-5B*
• ISO 2808-6B
• JIS K 5600-1-7
• NF T 30-123
* Standards not in bold have been superseded but are still recognised in some industries
Elcometer 141 Paint Inspection Gauge- Specifications
| Part Number |
Description |
Certificate |
| A141—D |
Elcometer 141 Paint Inspection Gauge |
ο |
| Scale Range (maximum) |
0 to 1.8mm |
|
| Scale Resolution |
0.02mm |
|
| Dimensions (fitted to handle) |
160 x 100 x 35mm |
|
| Weight (fitted to handle) |
510g |
|
ο Optional Calibration Certificate available
Packing List
- Elcometer 141 Paint Inspection Gauge
- x50 microscope
- 3 Cutters
- Marker pen
- Hexagonal wrench
- Carry Case
- Operating Instructions
Elcometer 141 Paint Inspection Gauge – Standards
Elcometer 141 Paint Inspection Gauge can be used in accordance with:
• AS 1580.108.2
• ASTM D 4138-A
• BS 3900-C5-5B*
• DIN 50986
• ISO 2808-5B*
• ISO 2808-6B
• JIS K 5600-1-7
• NF T 30-123
* Standards not in bold have been superseded but are still recognised in some industries
Elcometer 141 Paint Inspection Gauge – Accessories
| Part Number |
Description |
Cutting Angle |
Measurement
Range |
Graticule Scale
Factor |
Certificate |
| T99915761-1 |
Tungsten Carbide Cutter No 1 |
45° |
20 – 2000μm |
20µm |
ο |
| T99915761-4 |
Tungsten Carbide Cutter No 4 |
26.6° |
10 – 1000μm |
10µm |
ο |
| T99915761-6 |
Tungsten Carbide Cutter No 6 |
5.7° |
2 – 200μm |
2µm |
ο |
ο Optional Calibration Certificate available
