Elcometer 456 Dry Film Thickness Gauge Probe Options
- Product Description
- Specifications
- Data Sheet
Product Description

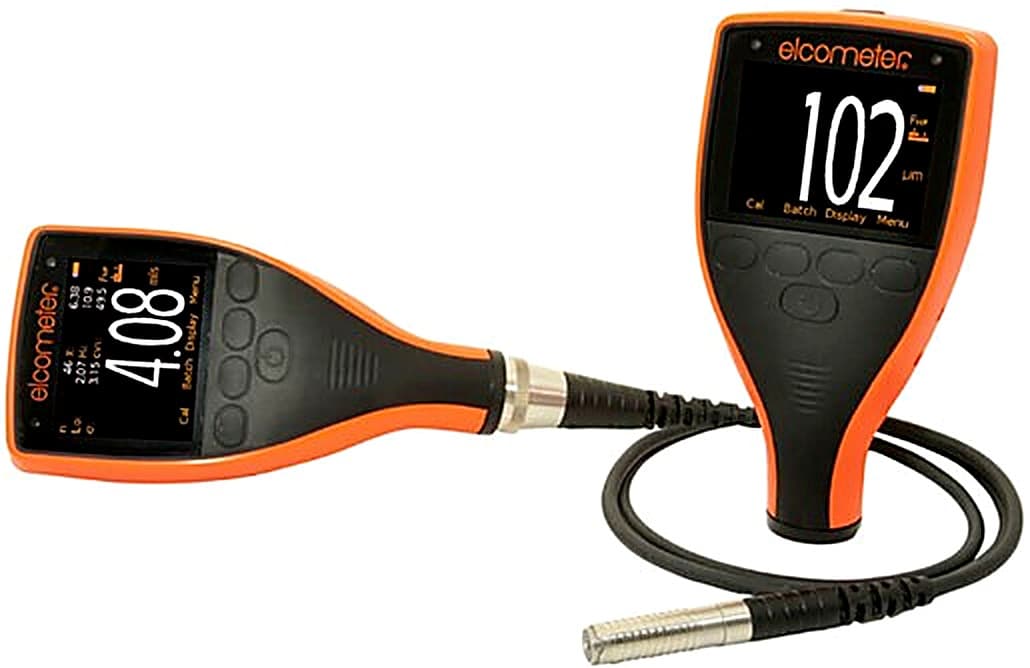

All Elcometer 456 Coating Thickness Gauge probes are fully interchangeable and are available in a number of designs and scale ranges to meet your specific application.
Ferrous coating thickness gauge probes measure non-magnetic coatings on ferro-magnetic substrates. Elcometer 456 Coating Thickness Ferrous Gauges accept any ferrous probe.
Non-Ferrous coating thickness gauge probes measure non-conductive coatings on non-ferrous metal substrates and Elcometer 456 Non-Ferrous Gauges accept any non-ferrous probe.
Dual Ferrous Non-Ferrous probes measure both ferrous and non-ferrous applications with automatic substrate detection. Elcometer 456 Ferrous Non-Ferrous Coating Thickness Gauges accept all Ferrous, Non-Ferrous and Dual Ferrous Non-Ferrous probes.

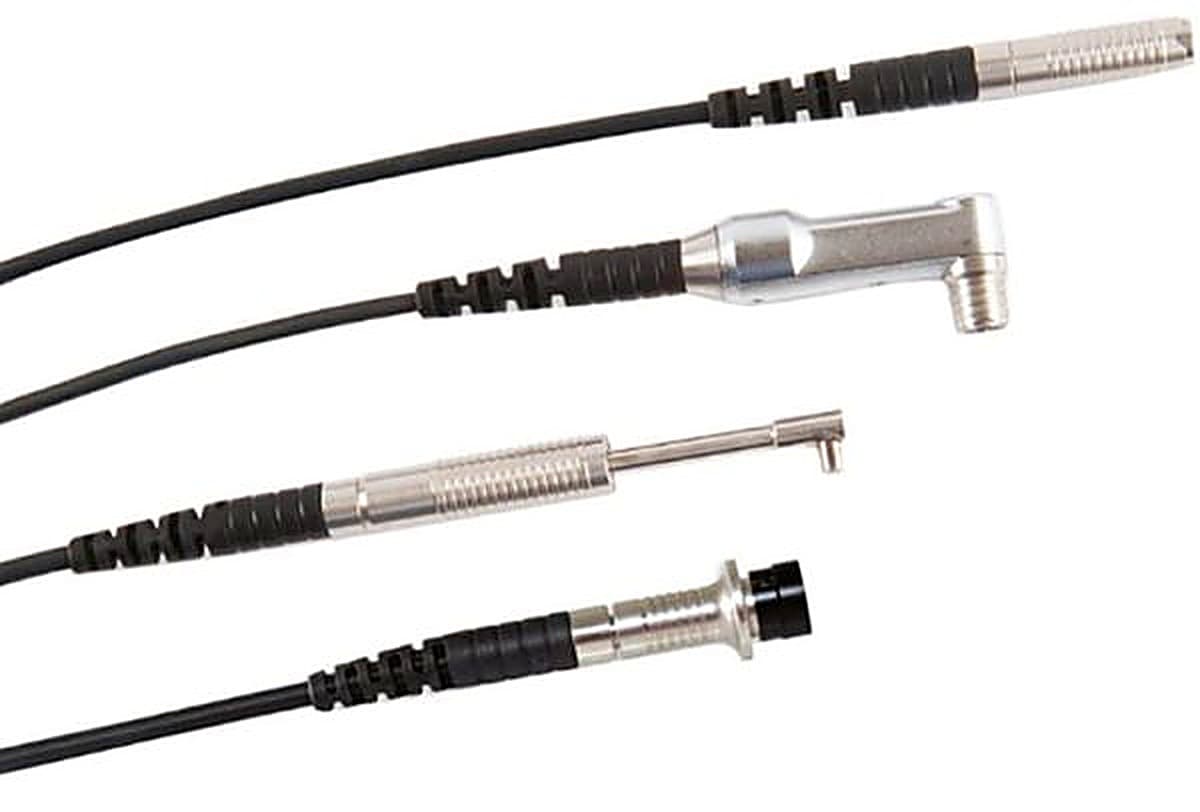

Standard Straight Probes Standard probes measure coatings on both flat and curved surfaces |
|
Mini Probes Mini probes are ideal for harder to reach areas and edges |
|
Right Angle Probes Right Angle Probes are designed for taking coating thickness readings where access is restricted |
|
Plug-in Probes Plug-in probes convert a separate coating thickness gauge into an integral gauge |
|
Telescopic Probes Telescopic Probes extends right angle probes for out of reach areas |
|
Scan Probes Scan Probes allows users to take individual measurement or scan large surface areas without damaging the probes – fitted with replaceable probe caps |
|
Waterproof Probes Waterproof Probes are sealed for use underwater at depth |
|
High Temperature Probes High Temperature Probes for use on hot coated materials up to 250°C |
|
Anodising Probes Anodising Probes are chemical resistant washable probes – ideal for the anodising environment |
|
Armoured Cable Probes Armoured Cable Probes with metal reinforced heavy duty cables, reducing the risk of cable damage |
|
Soft Coating Probes Soft Coating Probes have large surface area probes for soft reach materials (HVCA approved) |
|
Specialist Probes Specialist Probes are designed for measuring coating thickness on specialist substrates such as graphite or electroplated components |
Elcometer probes have a maximum operating temperature of 80°C with the exception of separate ferrous probes 150°C and Hi-Temperature PINIP’s 250°C. The stated temperature is the substrate temperature, and the duty cycle of the probe must be reduced to ensure a minimal temperature build-up within the probe.
All Elcometer coating thickness gauge probes are supplied with a Test Certificate and a set of calibration foils appropriate to the scale range of the probe.
Specifications
Elcometer 456 Dry Film Thickness Gauge Probe Options-Specifications
Scale 0.5: Range: 0-500μm |
|||||
Accuracy: | ±1-3% or ±2.5μm | ||||
Range: | 0-500μm | ||||
Resolution: | 0.1μm: 0-100μm 1μm: 100-500μm |
||||
Certificate: | • | ||||
Description Ferrous (F) |
Part Number | Minimum Headroom |
Minimum Sample Diameter |
Minimum Convex Surface Diameter |
Minimum Concave Surface Radius |
Mini Probe – Straight 45mm long | T456CFM3—A | 6mm | 3mm | 1.9mm | 6.5mm |
Mini Probe – 90° 45mm long | T456CFM3R90A | Headroom:16mm Width:7mm |
3mm | 1.9mm | 6.5mm |
Mini Probe – 45° 45mm long | T456CFM3R45A | Headroom:18mm Width:7mm |
3mm | 1.9mm | 6.5mm |
Mini Probe – Straight 150mm long | T456CFM3—C | 6mm | 3mm | 1.9mm | 6.5mm |
Mini Probe – 90° 150mm long | T456CFM3R90C | Headroom:16mm Width:7mm |
3mm | 1.9mm | 6.5mm |
Mini Probe – 90° 300mm long | T456CFM3R90D | Headroom:16mm Width:7mm |
3mm | 1.9mm | 6.5mm |
Mini Probe – 45° 300mm long | T456CFM3R45D | Headroom:18mm Width:7mm |
3mm | 1.9mm | 6.5mm |
Non-Ferrous (N) |
|||||
Mini Probe – Straight 45mm long | T456CNM3—A | 6mm | 4mm | 6mm | 8.5mm |
Mini Probe – 90° 45mm long | T456CNM3R90A | Headroom:16mm Width:7mm |
4mm | 6mm | 8.5mm |
Mini Probe – Straight 150mm long | T456CNM3—C | 6mm | 4mm | 6mm | 8.5mm |
Mini Probe – 90° 150mm long | T456CNM3R90C | Headroom:16mm Width:7mm |
4mm | 6mm | 8.5mm |
Mini Probe – 90° 400mm long | T456CNM3R90E | Headroom:16mm Width:7mm |
4mm | 6mm | 8.5mm |
Non-Ferrous – Graphite (N) |
|||||
Mini Probe – 90° Graphite 45mm long | T456CNMG3R90A | Headroom:16mm Width:7mm |
4mm | 6mm | 8.5mm |
Mini Probe – 90° Graphite 150mm long | T456CNMG3R90C | Headroom:16mm Width:7mm |
4mm | 6mm | 8.5mm |
Mini Probe – 90° Graphite 400mm long | T456CNMG3R90E | Headroom:16mm Width:7mm |
4mm | 6mm | 8.5mm |
Scale 1: Range: 0-1500μm |
|||||
Accuracy: | ±1-3% or ±2.5μm | ||||
Ranged: | 0-1500μm | ||||
Resolution: | 0.1μm: 0-100μm 1μm: 100-1500μm |
||||
Certificate: | • | ||||
Description Ferrous (F) |
Part Number | Minimum Headroom |
Minimum Sample Diameter |
Minimum Convex Surface Diameter |
Minimum Concave Surface Radius |
Straight Probe | T456CF1S | 85mm | 4mm | 4mm | 25mm |
Straight Probe, sealed | T456CF1E | 85mm | 4mm | 4mm | 25mm |
Scan Probe | T456CF1U | 86mm | 15mm | Flat Surface | |
Scan Probe, Armoured | T456CF1UARM | 140mm | 15mm | Flat Surface | |
Right Angle Probe | T456CF1R | 28mm | 4mm | 4mm | 25mm |
Mini Probe – 90°, 45mm long | T456CFM5R90A | Headroom:16mm Width:7mm |
4mm | 3mm | 6.5mm |
Mini Probe – 90°, 45mm long, sealed | T456CFME5R90A | Headroom:16mm Width:7mm |
4mm | 3mm | 6.5mm |
Mini Probe – 90°, 45mm long, 2m cable, sealed | T456CFME5R90A-2 | Headroom:16mm Width:7mm |
4mm | 3mm | 6.5mm |
PINIP™ Integral Probe | T456CF1P | 170mm | 4mm | 4mm | 60mm |
Non-Ferrous (N) |
|||||
Straight Probe | T456CN1S | 85mm | 4mm | 10mm | 10mm |
Right Angle Probe | T456CN1R | 28mm | 4mm | 10mm | 14mm |
Mini Probe – 90°, 45mm long | T456CNM5R90A | Headroom:16mm Width:7mm |
4mm | 10mm | 8.5mm |
Mini Probe – 90°, 150mm long | T456CNM5R90C | Headroom:16mm Width:7mm |
4mm | 10mm | 8.5mm |
Mini Probe – 90°, 400mm long | T456CNM5R90E | Headroom:16mm Width:7mm |
4mm | 10mm | 8.5mm |
Anodiser Probe | T456CN1AS | 100mm | 4mm | 10mm | 14mm |
PINIP™ Integral Probe | T456CN1P | 180mm | 4mm | 10mm | 50mm |
Ferrous & Non-Ferrous (FNF) |
|||||
Straight Probe | T456CFNF1S | 88mm | F: 4mm N: 6mm |
F: 4mm N: 26mm |
12.5mm |
Straight Probe, armoured cable | T456CFNF1ARM | 185mm | F: 4mm N: 6mm |
F: 4mm N: 26mm |
12.5mm |
Scan Probe | T456CFNF1U | 89mm | 15mm | Flat Surface | Flat Surface |
Right Angle Probe | T456CFNF1R | 38mm | F: 4mm N: 6mm |
F: 4mm N: 26mm |
12.5mm |
PINIP™ Integral Probe | T456CFNF1P | 180mm | F: 4mm N: 6mm |
F: 4mm N: 26mm |
65mm |
Scale 2: Range: 0-5mm |
|||||
Accuracy: | ±1-3% or ±20μm | ||||
Ranged: | 0-5mm | ||||
Resolution: | 1μm: 0-1mm 10μm: 1-5mm |
||||
Certificate: | • | ||||
Description Ferrous (F) |
Part Number | Minimum Headroom |
Minimum Sample Diameter |
Minimum Convex Surface Diameter |
Minimum Concave Surface Radius |
Straight Probe | T456CF2S | 89mm | 8mm | 4mm | 25mm |
Scan Probe | T456CF2U | 90mm | 15mm | Flat Surface | |
Right Angle Probe | T456CF2R | 32mm | 8mm | 4mm | 25mm |
Armoured Probe | T456CF2ARM | 138mm | 8mm | 4mm | 25mm |
Telescopic Probe – 56 -122cm long | T456CF2T | 36mm | 8mm | 4mm | 25mm |
Soft Coating Probe | T456CF2B | 89mm | 8mm | Flat Surface | |
Waterproof Probe, 1m cable | T456CF2SW | 138mm | 8mm | 4mm | 40mm |
Waterproof Probe, 5m cable | T456CF2SW-5 | 138mm | 8mm | 4mm | 40mm |
Waterproof Probe, 15m cable | T456CF2SW-15 | 138mm | 8mm | 4mm | 40mm |
Waterproof Probe, 30m cable | T456CF2SW-30 | 138mm | 8mm | 4mm | 40mm |
Waterproof Probe, 50m cable | T456CF2SW-50 | 138mm | 8mm | 4mm | 40mm |
Waterproof Probe, 75m cable | T456CF2SW-75 | 138mm | 8mm | 4mm | 40mm |
PINIP™ Integral Probe | T456CF2P | 174mm | 8mm | 4mm | 60mm |
Hi-Temperature PINIP™ Probe- 250°C | T456CF2PHT | 174mm | 8mm | 4mm | 60mm |
Non-Ferrous (N) |
|||||
Straight Probe | T456CN2S | 88mm | 14mm | 100mm | 150mm |
PINIP™ Integral Probe | T456CN2P | 185mm | 14mm | 100mm | 150mm |
Scale 3: Range: 0-13mm |
|||||
Accuracy: | ±1-3% or ±20μm | ||||
Ranged: | 0-5mm | ||||
Resolution: | 1μm: 0-1mm 10μm: 1-5mm |
||||
Certificate: | • | ||||
Description Ferrous (F) |
Part Number | Minimum Headroom |
Minimum Sample Diameter |
Minimum Convex Surface Diameter |
Minimum Concave Surface Radius |
Straight Probe | T456CF3S | 102mm | 14mm | 15mm | 40mm |
PINIP™ Integral Probe | T456CF3P | 184mm | 14mm | 15mm | 45mm |
Non-Ferrous (N) |
|||||
Straight Probe | T456CN3S | 170mm | 35mm | Flat Surface | |
Scale FM7: Range: 0.6-3.8mm |
|||||
Accuracy: | ±7.5% or ±114μm | ||||
Range: | 0.60-3.8mm | ||||
Resolution: | 1μm: 0-1mm 10μm: 1-3.8mm |
||||
Certificate: | • | ||||
Description Ferrous (F) |
Part Number | Minimum Headroom |
Minimum Sample Diameter |
Minimum Convex Surface Diameter |
Minimum Concave Surface Radius |
Mini Probe – 45°, 45mm long | T456CFM7R45A | 20mm | 6.5 mm | – | – |
Scale 6: Range: Ferrous: 0-25mm |
|||||
Accuracy: | ±1-3% or ±100μm | ||||
Range: | Ferrous: 0-25mm Non-Ferrous: 0-30mm |
||||
Resolution: | 10μm: 0-2mm 100μm: 2-30mm |
||||
Certificate: | • | ||||
Description Ferrous (F) |
Part Number | Minimum Headroom |
Minimum Sample Diameter |
Minimum Convex Surface Diameter |
Minimum Concave Surface Radius |
Straight Probe | T456CF6S | 150mm | 51x51mm2 | 35mm | 170mm |
Straight Probe, armoured cable | T456CF6ARM | 190mm | 51x51mm2 | 35mm | 170mm |
Scale 7: Range: 0-31mm |
|||||
Accuracy: | ±1-3% or ±100μm | ||||
Range: | 0-31mm | ||||
Resolution: | 10μm: 0-2mm 100μm: 2-31mm |
||||
Certificate: | • | ||||
Description Ferrous (F) |
Part Number | Minimum Headroom |
Minimum Sample Diameter |
Minimum Convex Surface Diameter |
Minimum Concave Surface Radius |
Straight Probe, armoured cable | T456CF7ARM | 200mm | 55x55mm2 | 40mm | 170mm |
