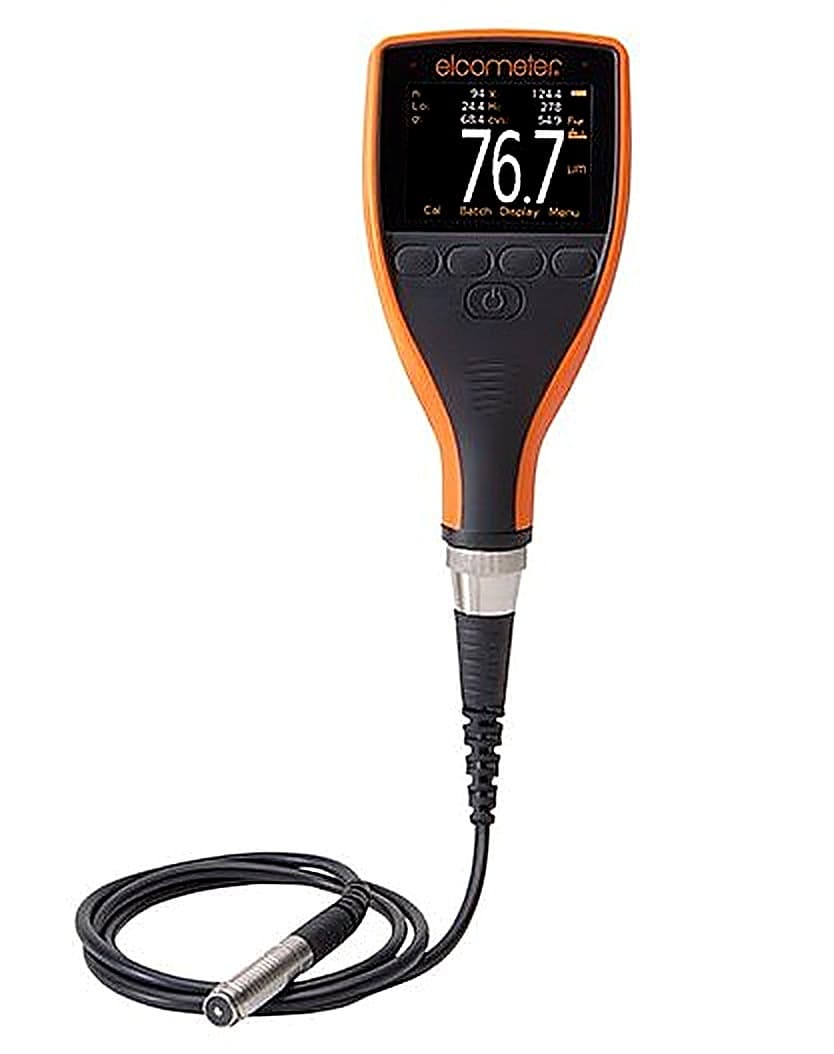

The Elcometer 456 Coating Thickness Gauge sets new standards; providing reliable and accurate coating thickness measurements; helping you to become more efficient.

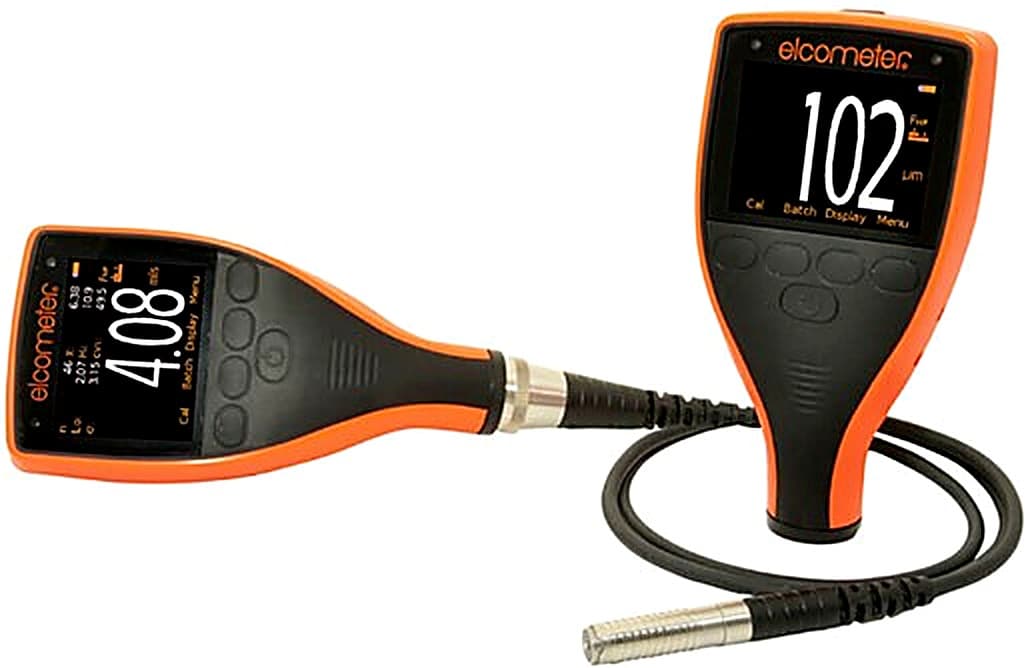

The Elcometer 456 Dry Film Thickness Gauge is available in three different models. Each coating thickness gauge provides the user with increasing functionality – from the entry level Elcometer 456 Basic, to the top of the range Elcometer 456 Top.

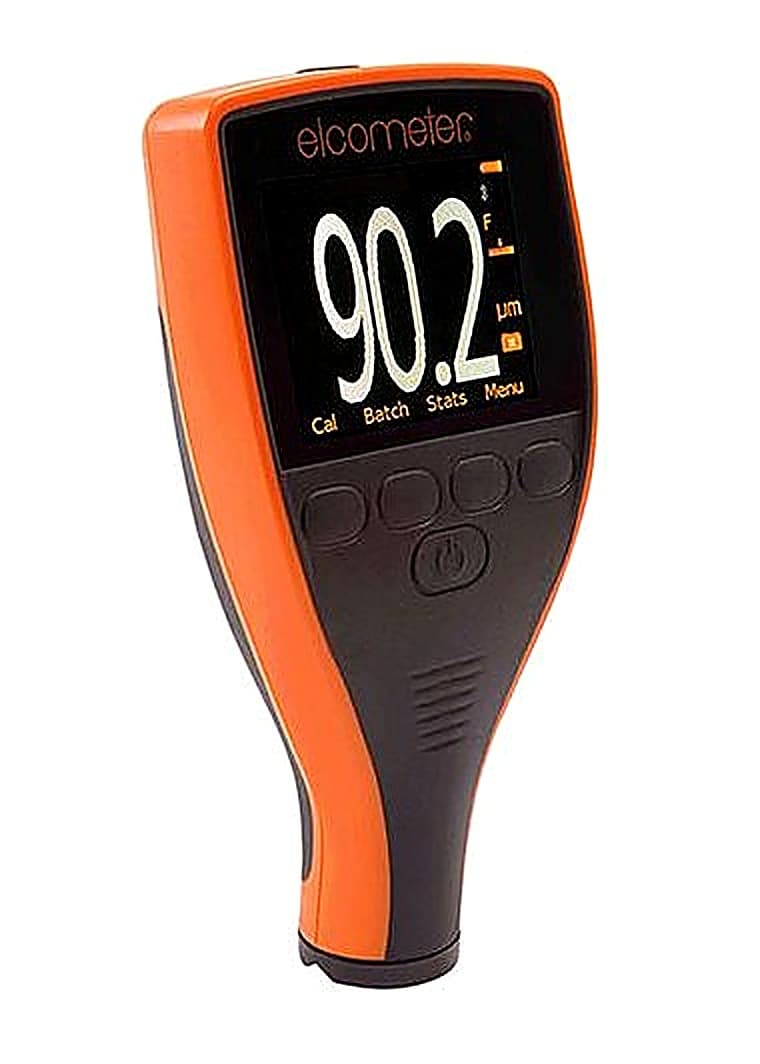

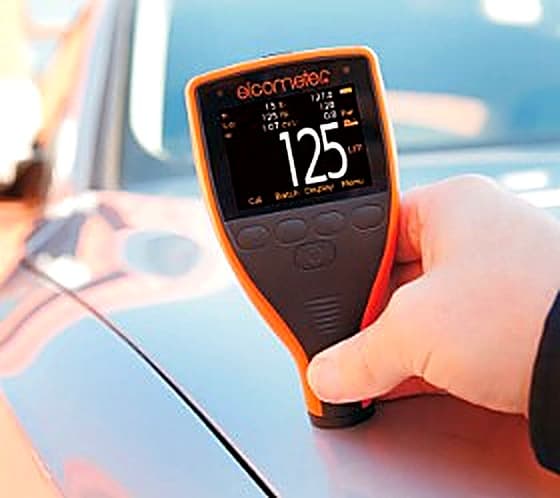

Integral dry film coating thickness gauges are ideal for single handed operation as the wide footprint of the Bigfoot™ internal probe provides greater stability during coating thickness measurement – allowing for consistent, repeatable and accurate dry film thickness results.

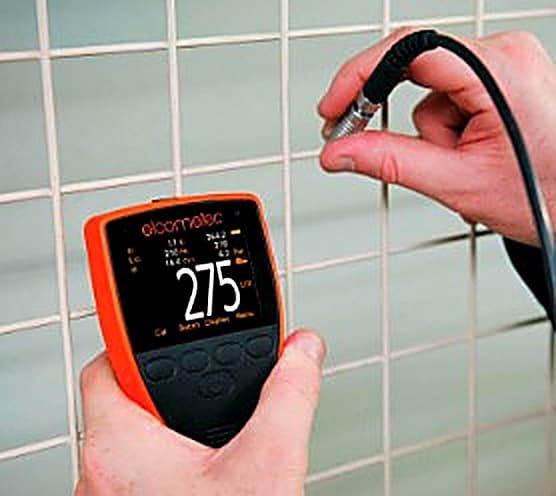

Separate dry film coating thickness gauge models, with their wide range of probes, provide even greater dry film thickness measurement flexibility.

Compatible with ElcoMaster® software and ElcoMaster® Mobile App, individual coating thickness measurements can be transferred via USB or Bluetooth to PC or a mobile device for analysis and instant report generation.

• Specialised probes to meet a wide range of applications
• Integral and separate gauges to measure coatings up to 30mm
• Dust and water resistant rugged design to IP65
• Drop tested to a height of 2m
• Secure probe connection for improved durability
• Bigfoot™ integral probe for accurate and repeatable measurements
• Ergonomic design for comfort during continuous use
• 2.4″ (6cm) colour screen provides enhanced reading visibility at all angles
• Fast reading rate of more than 70 readings per minute
• Large easy to read colour display
• Scratch and solvent resistant screen
• Alpha numeric batch identification
• Large positive buttons with feedback
• USB and to ElcoMaster® 2.0 software Bluetooth data output

Easy Large buttons ideal for gloved hands Easy to use menus in multiple languages High contrast colour LCD with auto rotate High and low reading limit indicators Factory calibrated for immediate use Accurate Thickness measurement capability to ±1% Can be used in accordance with National & International Standards Temperature stable measurements Increased reading resolution for thin coatings Measures accurately on smooth, rough, thin and curved surfaces Reliable Repeatable and reproducible 2 year gauge warranty Supplied with fully traceable test certificates Batch date and time stamp facility Rugged Sealed, heavy duty and impact resistant Dust and waterproof equivalent to IP64 Scratch and solvent resistant display Durable gauge and probe construction Suitable for use in harsh environments Efficient Fast reading rate of 70+ per minute, 140+ per minute with Scan Probe Multiple calibration memories Alpha numeric batch identification User selectable calibration methods Compatible with ElcoMaster® and ElcoMaster® Mobile App Powerful Wide range of interchangeable probes USB and Bluetooth data output to iPhone* or Android™ devices Stores up to 150,000 readings in 2,500 batches Measures up to 31mm of coating on metal substrates



Product Features:

			■ Standard	□ Optional
		Model B	Model S	Model T
Fast, accurate reading rate; 70+ readings per minute		■	■	■
Repeatable & reproducible measurements		■	■	■
Easy to use menu structure; in 30+ languages		■	■	■
Tough, impact, water & dust resistant; equivalent to IP64		■	■	■
Bright colour screen; with permanent back light		■	■	■
Scratch & solvent resistant display; 2.4″ (6cm) TFT		■	■	■
Large positive feedback buttons		■	■	■
USB power supply; via PC		■	■	■
Test certificate		■	■	■
2 year gauge warranty*		■	■	■
Automatic rotating display; 0°, 90°, 180° & 270°		■	■	■
Ambient light sensor; with adjustable auto brightness		■	■	■
Emergency light		■	■	■
Tap awake from sleep		■	■	■
Gauge software updates¹; via ElcoMaster® software		■	■	■
Data output		■	■	■
	USB; to computer	■	■	■
	Bluetooth®; to computer, Android™ & iOSǂ devices		■	■
On screen statistics		■	■	■
	Number of readings; η	■	■	■
	Mean (average); x	■	■	■
	Standard deviation; ó	■	■	■
	Highest reading; Hi	■	■	■
	Lowest reading; Lo	■	■	■
	Coefficient of variation; CV%	■	■	■
	Elcometer index value²; EIV	■	■	■
	Nominal dry film thickness; NDFT		■	■
	IMO PSPC; %>NDFT, %>90		■	■
	High & low limits; definable audible & visual alarms		■	■
	Number above high limit;		■	■
	Number below low limit;		■	■
Live reading trend graph; in batch mode			■	■
ElcoMaster® software & USB cable		□	■	■
Replaceable screen protectors		□	■	■
Protective case		■	■	■
Plastic transit case		□	□	■
Integral models; with automatic gauge switch on		■	■	■
Probe type; Ferrous (F), Non-Ferrous (N), Dual (FNF)³		F, N, FNF	F, N, FNF	F, N, FNF
Measurement range		0-13mm	0-1500μm	0-1500μm
Separate models; with automatic probe recognition		■	■	■
	Probe type; Ferrous (F), Non-Ferrous (N), Dual (FNF)³	F, N, FNF	F, N, FNF	F, N, FNF
	Measurement range	0-31mm	0-31mm	0-31mm
On-screen calibration instructions; in 30+ languages		■	■	■
Multiple calibration methods		■	■	■
	Factory; resets to the factory calibration	■	■	■
	2-point; for smooth and rough surfaces	■	■	■
	1-point; zero calibration	■	■	■
	Zero offset4; for calibration according to ISO19840		■	■
Predefined calibration & measurement methods			■	■
	ISO, SSPC PA2, Swedish, Australian		■	■
Automatic calibration; for rapid calibration			■	■
Calibration memory type; gauge (g) or gauge & batch (gb)		g	gb	gb
Number of batches; with unique calibrations			1	2,500
Calibration memories; 3 user-programmable memories				■
Measurement outside calibration warning				■
Calibration lock with optional PIN code unlock		■	■	■
Delete last reading		■	■	■
Gauge memory; number of readings		Last 5	1,500	150,000
Individual batch calibrations; sent to PC via ElcoMaster®		■	■	■
Limits user definable audible & visual pass/fail warnings		■	■	■
	Gauge (g) or gauge & batch specific (gb) limits		g	gb
Date and time stamp			■	■
Batch types; normal, counted average, IMO PSPC			■	■
Navsea Mode				■
Batch review graph				■
Review, clear & delete batches			■	■
Copy batches and calibration settings				■
Alpha-numeric batch names; user definable on the gauge				■
Scan & Auto Repeat Modes; with Scan probe connected				■
Fixed batch size mode; with batch linking				■

* The Elcometer 456 is extendable within 60 days from date of purchase, free of charge, to 2 years
ǂ Visit www.elcometer.com/sdk to find out how to integrate Elcometer’s MFi certified products to your App
1 Internet connection required
2 Elcometer Index Values are used in the automotive industry to assess a coating’s overall quality; USA patent number US7606671B2
3 FNF patent number USA: 5886522
4 Zero Offset USA patent number US6243661

The Elcometer 456 Coating Thickness Gauge can be used in accordance with:

• AS 2331.1.4
• AS 3894.3-B
• AS/NZS 1580.108.1
• ASTM B 499
• ASTM D 1186-B*
• ASTM D 1400*
• ASTM D 7091
• ASTM E 376
• ASTM G 12
• BS 3900-C5-6B*
• BS 3900-C5-6A*
• BS 5411-11*
• BS 5411-3*
• BS 5599
• DIN 50981*
• DIN 50984*
• ECCA T1*
• EN 13523-1
• IMO MSC.215(82)
• IMO MSC.244 (83)
• ISO 1461
• ISO 19840
• ISO 2063
• ISO 2178
• ISO 2360
• ISO 2808-6A*
• ISO 2808-6B*
• ISO 2808-7C
• ISO 2808-7D
• ISO 2808-12
• JIS K 5600-1-7
• NF T30-124
• SS 184159*
• SSPC PA 2
• US Navy PPI 63101-000
• US Navy NSI 009-32

Display information	2.4″ (6cm) QVGA colour TFT display, 320 x 240 pixels
Battery type	2 x AA dry cell batteries, rechargeable batteries can also be used
Battery life	~24 hours of continuous use at 1 reading per second5
Gauge dimensions (h x w x d)	141 x 73 x 37mm
Gauge weight	161g including supplied batteries
Operating temperature	-10 to 50°C

Gauges with Integral Probes

Scale 1
Range:	0-1500μm
Accuracy*:	±1-3% or ±2.5μm
Resolution:	0.1μm: 0-100μm; 1μm: 100-1500μm
		Model B	Model S	Model T	C
Elcometer 456 Ferrous Integral		A456CFBI1	A456CFSI1	A456CFTI1	●
Elcometer 456 Non-Ferrous Integral		A456CNBI1	See separate gauges with N2 PINIP™ Probe		●
Elcometer 456 Dual FNF Integral		A456CFNFBI1	A456CFNFSI1	A456CFNFTI1	●

Scale 2
Range:	0-5mm
Accuracy*:	±1-3% or ±20μm
Resolution:	1μm: 0-1mm; 10μm: 1-5mm
For higher resolution & accuracy on thin coatings Scale 2 gauges can be switched to the Scale 1 mode
		Model B	Model S	Model T	C
Elcometer 456 Ferrous Integral		A456CFBI2	See separate gauges with N2 PINIP™ Probe		●
Scale 3
Range:	0-13mm
Accuracy*:	±1-3% or ±50μm
Resolution:	1μm: 0-2mm; 10μm: 2-13mm
		Model B	Model S	Model T	C
Elcometer 456 Ferrous Integral		A456CFBI3	See separate gauges with N2 PINIP™ Probe		●

Gauge with Separate Probes

		Model B	Model S	Model T	C
Elcometer 456 Ferrous Separate		A456CFBS	A456CFSS	A456CFTS	●
Elcometer 456 Non-Ferrous Separate		A456CNBS	A456CNSS	A456CNTS	●
Elcometer 456 Dual FNF Separate		A456CFNFBS	A456CFNFSS	A456CFNFTS	●
See separate leaflet for the Elcometer 456 Separate Probe Options

* Whichever is the greater
● Test Certificate supplied as standard

• Elcometer 456 Dry Film Coating Thickness Gauge
• Calibration foils (integrals only)
• Wrist harness
• Transit case (T)
• Protective case (B, S & T)
• 1 x Screen protectors (S & T)
• 2 x AA batteries
• Operating instructions
• USB cable (S & T)
• ElcoMaster® software (S & T)

Elcometer 456 Coating Thickness Gauge Digital DFTG Data Sheet

Elcometer 456 Coating Thickness Gauge can be used in accordance with:

• AS 2331.1.4
• AS 3894.3-B
• AS/NZS 1580.108.1
• ASTM B 499
• ASTM D 1186-B*
• ASTM D 1400*
• ASTM D 7091
• ASTM E 376
• ASTM G 12
• BS 3900-C5-6B*
• BS 3900-C5-6A*
• BS 5411-11*
• BS 5411-3*
• BS 5599
• DIN 50981*
• DIN 50984*
• ECCA T1*
• EN 13523-1
• IMO MSC.215(82)
• IMO MSC.244 (83)
• ISO 1461
• ISO 19840
• ISO 2063
• ISO 2178
• ISO 2360
• ISO 2808-6A*
• ISO 2808-6B*
• ISO 2808-7C
• ISO 2808-7D
• ISO 2808-12
• JIS K 5600-1-7
• NF T30-124
• SS 184159*
• SSPC PA 2
• US Navy PPI 63101-000
• US Navy NSI 009-32

* Standards not in bold have been superseded but are still recognised in some industries.

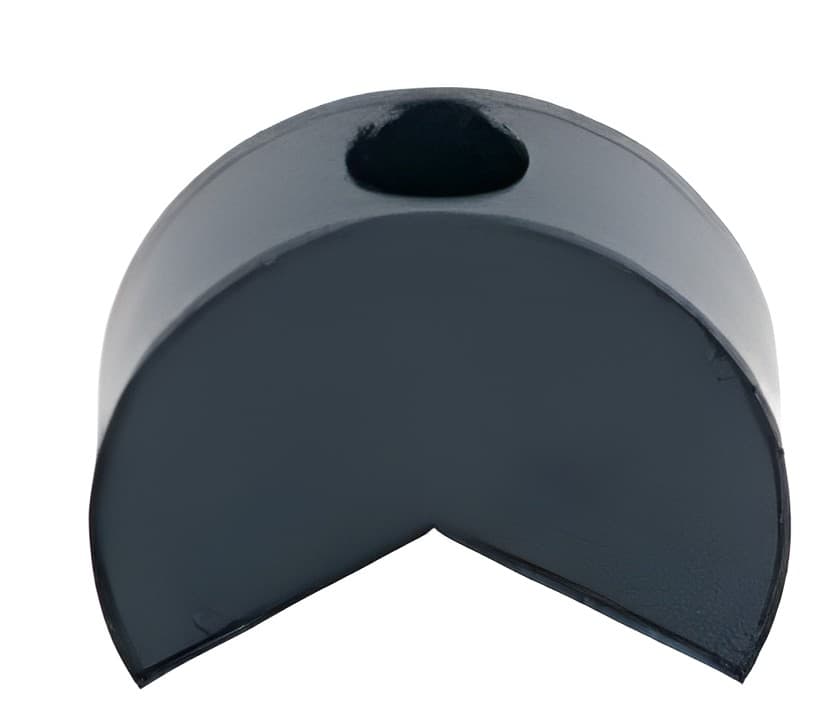

	Jumbo Hand Grip
	Ideal for precision placement for the most accurate results on flat and curved surfaces. Place the probe inside the Jumbo Hand Grip and take measurements – ideal when wearing gloves.
	Suitable Elcometer 456 Scale 1 or Scale 2 straight probes.
	Ferrous and Non-Ferrous Probes	Dual Ferrous and Non-Ferrous Probes
	T9997766

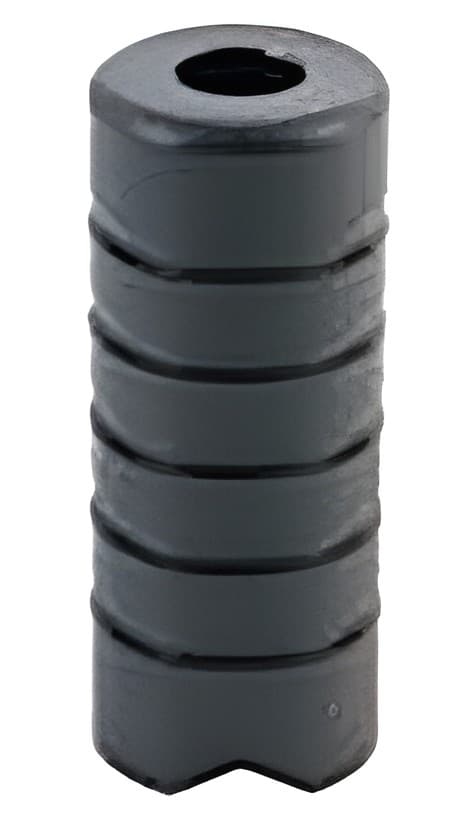

	V-Probe Adaptor
	Ideal for precision placement for the most accurate results on medium and large diameter curved surfaces such as pipes and cylinders. Suitable for any Elcometer 456 Scale 1 or 2 straight probes.
	Ferrous and Non-Ferrous Probes	Dual Ferrous and Non-Ferrous Probes
	T9997381	T99913133
	Ultra / Scan Probe Replacement End Caps
	Highly durable – when tested on smooth surfaces probe end caps have been scanned more than 50km – each end cap snaps on to the end of the Ultra / Scan probe significantly enhancing the lifetime of the probe.
	Ferrous & Dual Ferrous Non-Ferrous Probes
	T456C23956	Replacement Ultra / Scan Probe End Caps (3 per pack)
	Probe Placement Jig
	The Elcometer probe placement jig is the ideal accessory for measuring coatings on small or complex components when the highest levels of repeatability and accuracy are required. is supplied with a probe housing and a component holder to suit Scale 1 or Scale 2 straight probes
	T95012880	Probe Placement Jig
	T95013028	Component Hand Vice
	T95012888	Cable Release Assembly – ideal for remote measurements
	T95015961	Dual FNF Probe Housing Adaptor
	T95016896	Mini Probe Housing Adaptor
	Calibration Foils / Coated Standards / Zero Test Plates
	Elcometer offers a range of individual precision foils, foil sets, coated thickness standards and zero test plates to ensure the greatest possible accuracy.
	Data Output Controller
	Enables data to be output from the Elcometer 456 via RS232 ports for the purposes of controlling automated production lines. The Elcometer Software Support Team, or users can produce their own customised software to utilise the data output from the Elcometer 456 gauge to remotely trigger pass/fail criteria for their processes.
	T99925387	Elcometer Data Output Controller
	Operating Temp	0 to 50°C
	Data Input	USB
	Data Output	One RS232 serial output via 9 way D-Type connector
	Power Supply	Requires 5V 1A (min) DC supply via mini USB. External plug-in mains adapter with interchangeable UK/EU/US/AUS pins supplied
	Packing List	Elcometer Data Output Controller, USB to RS232 converter lead, power supply

	T99922341	Self Adhesive Screen Protectors (x10)
	T99921325	USB Cable
	T45622371	Benchtop Inspection Stand – for Separate Gauges

All Elcometer 456 coating thickness gauge probes are fully interchangeable and are available in a number of designs and scale ranges to meet your specific application.

Ferrous coating thickness gauge probes measure non-magnetic coatings on ferro-magnetic substrates. Elcometer 456 coating thickness ferrous gauges accept any ferrous probe.

Non-ferrous coating thickness gauge probes measure non-conductive coatings on non-ferrous metal substrates and Elcometer 456 non-ferrous gauges accept any non-ferrous probe.

Dual FNF probes measure both ferrous and non-ferrous applications with automatic substrate detection. Elcometer 456 FNF coating thickness gauges accept all ferrous, non-ferrous and dual FNF probes.

Click HERE for Comprehensive Separate Probe leaflet.

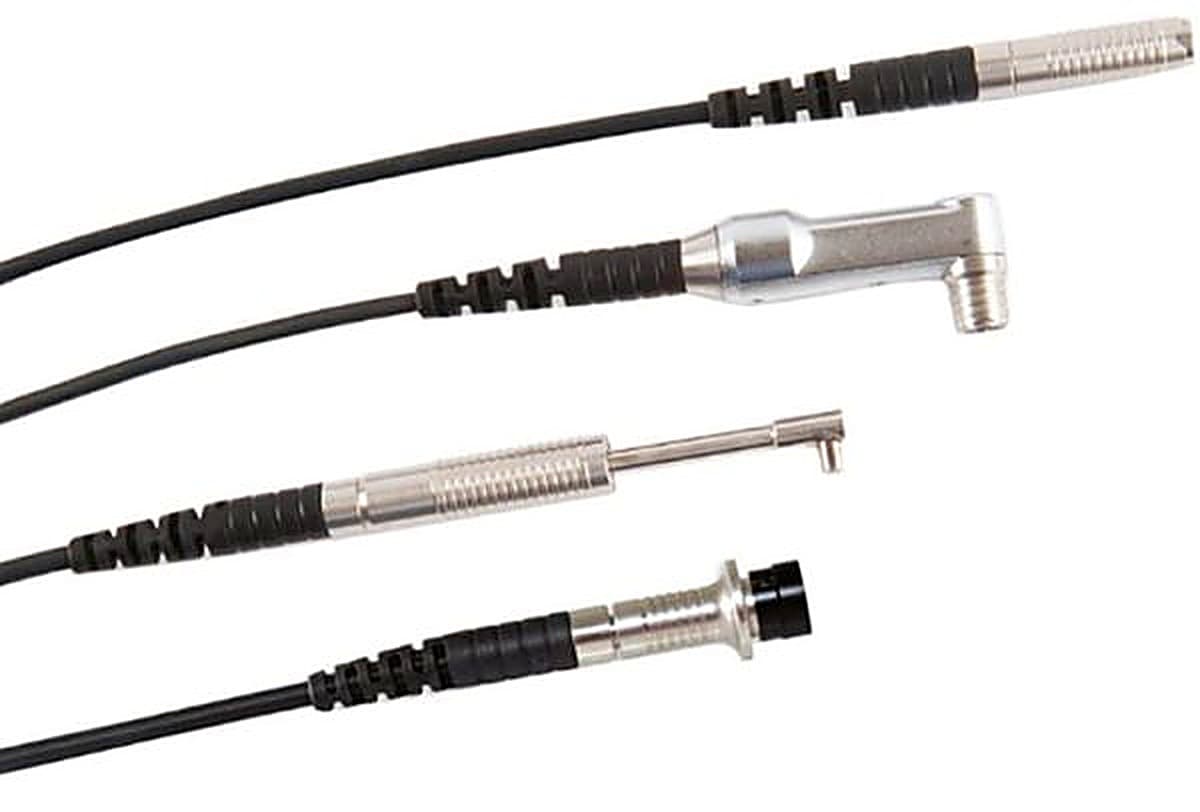

	Standard Straight Probes Standard probes measure coatings on both flat and curved surfaces
	Mini Probes Mini probes are ideal for harder to reach areas and edges
	Right Angle Probes Right Angle Probes are designed for taking coating thickness readings where access is restricted
	Plug-in Probes Plug-in probes convert a separate coating thickness gauge into an integral gauge
	Telescopic Probes Telescopic Probes extends right angle probes for out of reach areas
	Scan Probes Scan Probes allows users to take individual measurement or scan large surface areas without damaging the probes – fitted with replaceable probe caps
	Waterproof Probes Waterproof Probes are sealed for use underwater at depth
	High Temperature Probes High Temperature Probes for use on hot coated materials up to 250°C
	Anodising Probes Anodising Probes are chemical resistant washable probes – ideal for the anodising environment
	Armoured Cable Probes Armoured Cable Probes with metal reinforced heavy duty cables, reducing the risk of cable damage
	Soft Coating Probes Soft Coating Probes have large surface area probes for soft reach materials (HVCA approved)
	Specialist Probes Specialist Probes are designed for measuring coating thickness on specialist substrates such as graphite or electroplated components

Elcometer probes have a maximum operating temperature of 80°C with the exception of separate ferrous probes 150°C and Hi-Temperature PINIP’s 250°C. The stated temperature is the substrate temperature, and the duty cycle of the probe must be reduced to ensure a minimal temperature build-up within the probe.

All Elcometer coating thickness gauge probes are supplied with a Test Certificate and a set of calibration foils appropriate to the scale range of the probe.

Elcometer 456 Dry Film Thickness Gauge Probe Options-Specifications

Scale 0.5: Range: 0-500μm
Accuracy:	±1-3% or ±2.5μm
Range:	0-500μm
Resolution:	0.1μm: 0-100μm 1μm: 100-500μm
Certificate:	•
Description Ferrous (F)	Part Number	Minimum Headroom	Minimum Sample Diameter	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Mini Probe – Straight 45mm long	T456CFM3—A	6mm	3mm	1.9mm	6.5mm
Mini Probe – 90° 45mm long	T456CFM3R90A	Headroom:16mm Width:7mm	3mm	1.9mm	6.5mm
Mini Probe – 45° 45mm long	T456CFM3R45A	Headroom:18mm Width:7mm	3mm	1.9mm	6.5mm
Mini Probe – Straight 150mm long	T456CFM3—C	6mm	3mm	1.9mm	6.5mm
Mini Probe – 90° 150mm long	T456CFM3R90C	Headroom:16mm Width:7mm	3mm	1.9mm	6.5mm
Mini Probe – 90° 300mm long	T456CFM3R90D	Headroom:16mm Width:7mm	3mm	1.9mm	6.5mm
Mini Probe – 45° 300mm long	T456CFM3R45D	Headroom:18mm Width:7mm	3mm	1.9mm	6.5mm
Non-Ferrous (N)
Mini Probe – Straight 45mm long	T456CNM3—A	6mm	4mm	6mm	8.5mm
Mini Probe – 90° 45mm long	T456CNM3R90A	Headroom:16mm Width:7mm	4mm	6mm	8.5mm
Mini Probe – Straight 150mm long	T456CNM3—C	6mm	4mm	6mm	8.5mm
Mini Probe – 90° 150mm long	T456CNM3R90C	Headroom:16mm Width:7mm	4mm	6mm	8.5mm
Mini Probe – 90° 400mm long	T456CNM3R90E	Headroom:16mm Width:7mm	4mm	6mm	8.5mm
Non-Ferrous – Graphite (N)
Mini Probe – 90° Graphite 45mm long	T456CNMG3R90A	Headroom:16mm Width:7mm	4mm	6mm	8.5mm
Mini Probe – 90° Graphite 150mm long	T456CNMG3R90C	Headroom:16mm Width:7mm	4mm	6mm	8.5mm
Mini Probe – 90° Graphite 400mm long	T456CNMG3R90E	Headroom:16mm Width:7mm	4mm	6mm	8.5mm
Scale 1: Range: 0-1500μm
Accuracy:	±1-3% or ±2.5μm
Ranged:	0-1500μm
Resolution:	0.1μm: 0-100μm 1μm: 100-1500μm
Certificate:	•
Description Ferrous (F)	Part Number	Minimum Headroom	Minimum Sample Diameter	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Straight Probe	T456CF1S	85mm	4mm	4mm	25mm
Straight Probe, sealed	T456CF1E	85mm	4mm	4mm	25mm
Scan Probe	T456CF1U	86mm	15mm	Flat Surface
Scan Probe, Armoured	T456CF1UARM	140mm	15mm	Flat Surface
Right Angle Probe	T456CF1R	28mm	4mm	4mm	25mm
Mini Probe – 90°, 45mm long	T456CFM5R90A	Headroom:16mm Width:7mm	4mm	3mm	6.5mm
Mini Probe – 90°, 45mm long, sealed	T456CFME5R90A	Headroom:16mm Width:7mm	4mm	3mm	6.5mm
Mini Probe – 90°, 45mm long, 2m cable, sealed	T456CFME5R90A-2	Headroom:16mm Width:7mm	4mm	3mm	6.5mm
PINIP™ Integral Probe	T456CF1P	170mm	4mm	4mm	60mm
Non-Ferrous (N)
Straight Probe	T456CN1S	85mm	4mm	10mm	10mm
Right Angle Probe	T456CN1R	28mm	4mm	10mm	14mm
Mini Probe – 90°, 45mm long	T456CNM5R90A	Headroom:16mm Width:7mm	4mm	10mm	8.5mm
Mini Probe – 90°, 150mm long	T456CNM5R90C	Headroom:16mm Width:7mm	4mm	10mm	8.5mm
Mini Probe – 90°, 400mm long	T456CNM5R90E	Headroom:16mm Width:7mm	4mm	10mm	8.5mm
Anodiser Probe	T456CN1AS	100mm	4mm	10mm	14mm
PINIP™ Integral Probe	T456CN1P	180mm	4mm	10mm	50mm
Ferrous & Non-Ferrous (FNF)
Straight Probe	T456CFNF1S	88mm	F: 4mm N: 6mm	F: 4mm N: 26mm	12.5mm
Straight Probe, armoured cable	T456CFNF1ARM	185mm	F: 4mm N: 6mm	F: 4mm N: 26mm	12.5mm
Scan Probe	T456CFNF1U	89mm	15mm	Flat Surface	Flat Surface
Right Angle Probe	T456CFNF1R	38mm	F: 4mm N: 6mm	F: 4mm N: 26mm	12.5mm
PINIP™ Integral Probe	T456CFNF1P	180mm	F: 4mm N: 6mm	F: 4mm N: 26mm	65mm
Scale 2: Range: 0-5mm
Accuracy:	±1-3% or ±20μm
Ranged:	0-5mm
Resolution:	1μm: 0-1mm 10μm: 1-5mm
Certificate:	•
Description Ferrous (F)	Part Number	Minimum Headroom	Minimum Sample Diameter	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Straight Probe	T456CF2S	89mm	8mm	4mm	25mm
Scan Probe	T456CF2U	90mm	15mm	Flat Surface
Right Angle Probe	T456CF2R	32mm	8mm	4mm	25mm
Armoured Probe	T456CF2ARM	138mm	8mm	4mm	25mm
Telescopic Probe – 56 -122cm long	T456CF2T	36mm	8mm	4mm	25mm
Soft Coating Probe	T456CF2B	89mm	8mm	Flat Surface
Waterproof Probe, 1m cable	T456CF2SW	138mm	8mm	4mm	40mm
Waterproof Probe, 5m cable	T456CF2SW-5	138mm	8mm	4mm	40mm
Waterproof Probe, 15m cable	T456CF2SW-15	138mm	8mm	4mm	40mm
Waterproof Probe, 30m cable	T456CF2SW-30	138mm	8mm	4mm	40mm
Waterproof Probe, 50m cable	T456CF2SW-50	138mm	8mm	4mm	40mm
Waterproof Probe, 75m cable	T456CF2SW-75	138mm	8mm	4mm	40mm
PINIP™ Integral Probe	T456CF2P	174mm	8mm	4mm	60mm
Hi-Temperature PINIP™ Probe- 250°C	T456CF2PHT	174mm	8mm	4mm	60mm
Non-Ferrous (N)
Straight Probe	T456CN2S	88mm	14mm	100mm	150mm
PINIP™ Integral Probe	T456CN2P	185mm	14mm	100mm	150mm
Scale 3: Range: 0-13mm
Accuracy:	±1-3% or ±20μm
Ranged:	0-5mm
Resolution:	1μm: 0-1mm 10μm: 1-5mm
Certificate:	•
Description Ferrous (F)	Part Number	Minimum Headroom	Minimum Sample Diameter	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Straight Probe	T456CF3S	102mm	14mm	15mm	40mm
PINIP™ Integral Probe	T456CF3P	184mm	14mm	15mm	45mm
Non-Ferrous (N)
Straight Probe	T456CN3S	170mm	35mm	Flat Surface
Scale FM7: Range: 0.6-3.8mm
Accuracy:	±7.5% or ±114μm
Range:	0.60-3.8mm
Resolution:	1μm: 0-1mm 10μm: 1-3.8mm
Certificate:	•
Description Ferrous (F)	Part Number	Minimum Headroom	Minimum Sample Diameter	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Mini Probe – 45°, 45mm long	T456CFM7R45A	20mm	6.5 mm	–	–
Scale 6: Range: Ferrous: 0-25mm
Accuracy:	±1-3% or ±100μm
Range:	Ferrous: 0-25mm Non-Ferrous: 0-30mm
Resolution:	10μm: 0-2mm 100μm: 2-30mm
Certificate:	•
Description Ferrous (F)	Part Number	Minimum Headroom	Minimum Sample Diameter	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Straight Probe	T456CF6S	150mm	51x51mm2	35mm	170mm
Straight Probe, armoured cable	T456CF6ARM	190mm	51x51mm2	35mm	170mm
Scale 7: Range: 0-31mm
Accuracy:	±1-3% or ±100μm
Range:	0-31mm
Resolution:	10μm: 0-2mm 100μm: 2-31mm
Certificate:	•
Description Ferrous (F)	Part Number	Minimum Headroom	Minimum Sample Diameter	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Straight Probe, armoured cable	T456CF7ARM	200mm	55x55mm2	40mm	170mm

Elcometer probes have a maximum operating temperature of 80°C with the exception of separate ferrous probes 150°C and Hi-Temperature PINIP’s 250°C. The stated temperature is the substrate temperature, and the duty cycle of the probe must be reduced to ensure a minimal temperature build-up within the probe.

All Elcometer coating thickness gauge probes are supplied with a Test Certificate and a set of calibration foils appropriate to the scale range of the probe.

Scale 0.5: Range: 0-500μm
Accuracy:	±1-3% or ±2.5μm
Range:	0-500μm
Resolution:	0.1μm: 0-100μm 1μm: 100-500μm
Certificate:	•
Description Ferrous (F)	Part Number	Minimum Headroom	Minimum Sample Diameter	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Mini Probe – Straight 45mm long	T456CFM3—A	6mm	3mm	1.9mm	6.5mm
Mini Probe – 90° 45mm long	T456CFM3R90A	Headroom:16mm Width:7mm	3mm	1.9mm	6.5mm
Mini Probe – 45° 45mm long	T456CFM3R45A	Headroom:18mm Width:7mm	3mm	1.9mm	6.5mm
Mini Probe – Straight 150mm long	T456CFM3—C	6mm	3mm	1.9mm	6.5mm
Mini Probe – 90° 150mm long	T456CFM3R90C	Headroom:16mm Width:7mm	3mm	1.9mm	6.5mm
Mini Probe – 90° 300mm long	T456CFM3R90D	Headroom:16mm Width:7mm	3mm	1.9mm	6.5mm
Mini Probe – 45° 300mm long	T456CFM3R45D	Headroom:18mm Width:7mm	3mm	1.9mm	6.5mm
Non-Ferrous (N)
Mini Probe – Straight 45mm long	T456CNM3—A	6mm	4mm	6mm	8.5mm
Mini Probe – 90° 45mm long	T456CNM3R90A	Headroom:16mm Width:7mm	4mm	6mm	8.5mm
Mini Probe – Straight 150mm long	T456CNM3—C	6mm	4mm	6mm	8.5mm
Mini Probe – 90° 150mm long	T456CNM3R90C	Headroom:16mm Width:7mm	4mm	6mm	8.5mm
Mini Probe – 90° 400mm long	T456CNM3R90E	Headroom:16mm Width:7mm	4mm	6mm	8.5mm
Non-Ferrous – Graphite (N)
Mini Probe – 90° Graphite 45mm long	T456CNMG3R90A	Headroom:16mm Width:7mm	4mm	6mm	8.5mm
Mini Probe – 90° Graphite 150mm long	T456CNMG3R90C	Headroom:16mm Width:7mm	4mm	6mm	8.5mm
Mini Probe – 90° Graphite 400mm long	T456CNMG3R90E	Headroom:16mm Width:7mm	4mm	6mm	8.5mm
Scale 1: Range: 0-1500μm
Accuracy:	±1-3% or ±2.5μm
Ranged:	0-1500μm
Resolution:	0.1μm: 0-100μm 1μm: 100-1500μm
Certificate:	•
Description Ferrous (F)	Part Number	Minimum Headroom	Minimum Sample Diameter	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Straight Probe	T456CF1S	85mm	4mm	4mm	25mm
Straight Probe, sealed	T456CF1E	85mm	4mm	4mm	25mm
Scan Probe	T456CF1U	86mm	15mm	Flat Surface
Scan Probe, Armoured	T456CF1UARM	140mm	15mm	Flat Surface
Right Angle Probe	T456CF1R	28mm	4mm	4mm	25mm
Mini Probe – 90°, 45mm long	T456CFM5R90A	Headroom:16mm Width:7mm	4mm	3mm	6.5mm
Mini Probe – 90°, 45mm long, sealed	T456CFME5R90A	Headroom:16mm Width:7mm	4mm	3mm	6.5mm
Mini Probe – 90°, 45mm long, 2m cable, sealed	T456CFME5R90A-2	Headroom:16mm Width:7mm	4mm	3mm	6.5mm
PINIP™ Integral Probe	T456CF1P	170mm	4mm	4mm	60mm
Non-Ferrous (N)
Straight Probe	T456CN1S	85mm	4mm	10mm	10mm
Right Angle Probe	T456CN1R	28mm	4mm	10mm	14mm
Mini Probe – 90°, 45mm long	T456CNM5R90A	Headroom:16mm Width:7mm	4mm	10mm	8.5mm
Mini Probe – 90°, 150mm long	T456CNM5R90C	Headroom:16mm Width:7mm	4mm	10mm	8.5mm
Mini Probe – 90°, 400mm long	T456CNM5R90E	Headroom:16mm Width:7mm	4mm	10mm	8.5mm
Anodiser Probe	T456CN1AS	100mm	4mm	10mm	14mm
PINIP™ Integral Probe	T456CN1P	180mm	4mm	10mm	50mm
Ferrous & Non-Ferrous (FNF)
Straight Probe	T456CFNF1S	88mm	F: 4mm N: 6mm	F: 4mm N: 26mm	12.5mm
Straight Probe, armoured cable	T456CFNF1ARM	185mm	F: 4mm N: 6mm	F: 4mm N: 26mm	12.5mm
Scan Probe	T456CFNF1U	89mm	15mm	Flat Surface	Flat Surface
Right Angle Probe	T456CFNF1R	38mm	F: 4mm N: 6mm	F: 4mm N: 26mm	12.5mm
PINIP™ Integral Probe	T456CFNF1P	180mm	F: 4mm N: 6mm	F: 4mm N: 26mm	65mm
Scale 2: Range: 0-5mm
Accuracy:	±1-3% or ±20μm
Ranged:	0-5mm
Resolution:	1μm: 0-1mm 10μm: 1-5mm
Certificate:	•
Description Ferrous (F)	Part Number	Minimum Headroom	Minimum Sample Diameter	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Straight Probe	T456CF2S	89mm	8mm	4mm	25mm
Scan Probe	T456CF2U	90mm	15mm	Flat Surface
Right Angle Probe	T456CF2R	32mm	8mm	4mm	25mm
Armoured Probe	T456CF2ARM	138mm	8mm	4mm	25mm
Telescopic Probe – 56 -122cm long	T456CF2T	36mm	8mm	4mm	25mm
Soft Coating Probe	T456CF2B	89mm	8mm	Flat Surface
Waterproof Probe, 1m cable	T456CF2SW	138mm	8mm	4mm	40mm
Waterproof Probe, 5m cable	T456CF2SW-5	138mm	8mm	4mm	40mm
Waterproof Probe, 15m cable	T456CF2SW-15	138mm	8mm	4mm	40mm
Waterproof Probe, 30m cable	T456CF2SW-30	138mm	8mm	4mm	40mm
Waterproof Probe, 50m cable	T456CF2SW-50	138mm	8mm	4mm	40mm
Waterproof Probe, 75m cable	T456CF2SW-75	138mm	8mm	4mm	40mm
PINIP™ Integral Probe	T456CF2P	174mm	8mm	4mm	60mm
Hi-Temperature PINIP™ Probe- 250°C	T456CF2PHT	174mm	8mm	4mm	60mm
Non-Ferrous (N)
Straight Probe	T456CN2S	88mm	14mm	100mm	150mm
PINIP™ Integral Probe	T456CN2P	185mm	14mm	100mm	150mm
Scale 3: Range: 0-13mm
Accuracy:	±1-3% or ±20μm
Ranged:	0-5mm
Resolution:	1μm: 0-1mm 10μm: 1-5mm
Certificate:	•
Description Ferrous (F)	Part Number	Minimum Headroom	Minimum Sample Diameter	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Straight Probe	T456CF3S	102mm	14mm	15mm	40mm
PINIP™ Integral Probe	T456CF3P	184mm	14mm	15mm	45mm
Non-Ferrous (N)
Straight Probe	T456CN3S	170mm	35mm	Flat Surface
Scale FM7: Range: 0.6-3.8mm
Accuracy:	±7.5% or ±114μm
Range:	0.60-3.8mm
Resolution:	1μm: 0-1mm 10μm: 1-3.8mm
Certificate:	•
Description Ferrous (F)	Part Number	Minimum Headroom	Minimum Sample Diameter	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Mini Probe – 45°, 45mm long	T456CFM7R45A	20mm	6.5 mm	–	–
Scale 6: Range: Ferrous: 0-25mm
Accuracy:	±1-3% or ±100μm
Range:	Ferrous: 0-25mm Non-Ferrous: 0-30mm
Resolution:	10μm: 0-2mm 100μm: 2-30mm
Certificate:	•
Description Ferrous (F)	Part Number	Minimum Headroom	Minimum Sample Diameter	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Straight Probe	T456CF6S	150mm	51x51mm2	35mm	170mm
Straight Probe, armoured cable	T456CF6ARM	190mm	51x51mm2	35mm	170mm
Scale 7: Range: 0-31mm
Accuracy:	±1-3% or ±100μm
Range:	0-31mm
Resolution:	10μm: 0-2mm 100μm: 2-31mm
Certificate:	•
Description Ferrous (F)	Part Number	Minimum Headroom	Minimum Sample Diameter	Minimum Convex Surface Diameter	Minimum Concave Surface Radius
Straight Probe, armoured cable	T456CF7ARM	200mm	55x55mm2	40mm	170mm

Elcometer 456 Coating Thickness Gauge / Digital Dry Film Thickness Gauge (DFTG) Instruction Manual

Faster dry film thickness test – Elcometer 456 Coating Thickness Gauge

Calibration Methods on the Elcometer 456 Coating Thickness Gauge

How to calibrate the Elcometer 456 Scan Probe
