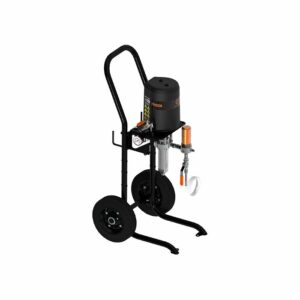

Elcometer TYPHOON Airless Pump
Product Description
Designed to be hard-wearing and easy to maintain, with low servicing costs, the Elcometer TYPHOON Airless Pump is efficient, powerful and reliable.
Ideal for metal fabricators applying shop primer, epoxy and other protective coatings, the 32:1 ratio Elcometer TYPHOON is an affordable airless pump with an excellent cost of ownership.
Efficient performance: Engineered for high product output yet low air consumption – 29.3lpm, the Elcometer Typhoon helps to lower expensive compressor running costs and improve performance.
User friendly: Sturdy yet compact, the Elcometer Typhoon is not only easy to manoeuvre around site, it has a 360° movable inlet fitting for easy access to the paint drum.
Easy to maintain: Designed with easy access high pressure dump valve, wet cup and lower- serviceable with standard workshop tools the Elcometer Typhoon is fast and easy to maintain.
Versatile: Choice of suction hose or product tank, suitable for applying primers, epoxy and other protective coatings.
Key Features
1) Low air consumption 29.3lpm and low maintenance air motor.
2) Protective air motor housing made from high grade polymer.
3) Anti-pulse chamber, compatible with waterborne & solvent based products, with stainless steel 80 mesh filter prevents tip blockages and ensures smooth spraying.
4) Rugged, long lasting pump with tungsten carbide and stainless steel ball and seats.
5) Easily accessible high pressure dump valve ensures fast material change over and easy pump cleaning.
6) 360° movable inlet fitting for easy access to paint drum.
7) Fluid and air regulator for consistent control of fluid & air pressure.
8) Floor locking plates for static use.
9) Ease of manual handling, less than 11.8kg wall mounted or only 24kg complete with trolley and suction hose or hopper options.
10) Easy to access wet cup for monitoring throat seal lubricant.
11) Each pump is fitted onto a rugged & ergonomic trolley with built-in hose & gun rack, for easy movement around site.
Unbolt the bracket and pump from the trolley to wall mount.
Specifications
| TYPHOON | ||||
| Ratio | 32 : 1 | |||
| Maximum fluid particle size** | 0.25mm (10mils) | |||
| Fluid temperature range | 4.4 – 60°C | |||
| Fluid inlet size | 1/2” BSP Male | |||
| Fluid outlet size | 1/4” BSP Male | |||
| Compatible Products that can be pumped | Solvent and waterbased products | |||
| COMPOSITION OF PARTS IN CONTACT WITH PRODUCT (WET) | ||||
| Seats | Polyamide | |||
| Balls | Stainless Steel | |||
| Pump Body / Cylinder Housing | Aluminium | |||
| Centre Section | Hard Chrome Stainless Steel | |||
| Packing Kit (Top) | Polyamide | |||
| Packing Kit (Bottom) | Polyamide | |||
| EXTERNAL PUMP PARTS (DRY) | ||||
| Pump Body / Cylinder Housing | Aluminium | |||
| AIR | ||||
| Air Pressure Operating Range | 1-7bar | |||
| Air Consumption at 100bar & 5.7 CPM | 29.3lpm | |||
| Maximum Air Inlet Pressure | 7bar | |||
| Air Inlet | 1/4” BSP Female | |||
| Air Exhaust / Silencer Port | 1/4” BSP Female | |||
| Compressor Requirements (Minimum) | 29.3lpm | |||
| Ambient Air Temperature Operating Range | -10 – 60°C | |||
| FLUID / PRODUCT | ||||
| Maximum Fluid Outlet Working Pressure | 226bar | |||
| Stroke Length | 60mm | |||
| Maximum Spray Tip Size | 0.45m | |||
| Product Output per Cycle | 45 cc | |||
| Free Flow Delivery @ 60 CPM* | 2.7 lpm | |||
| DIMENSIONS | ||||
| Weight (Pump only) | 8.7kg | |||
| Weight (Wall Mount with Suction Hose) | 11.8kg | |||
| Weight (Cart Mount with Suction Hose) | 23kg | |||
| Weight (Wall Mount with Hopper) | 11.9kg | |||
| Weight (Cart Mount with Hopper) | 23.1kg | |||
| Dimensions (Cart Mount) | 439 x 490 x 999mm | |||
| Dimensions (Wall Mount) | 332 x 304 x 535mm | |||
Data Sheet
Part Numbers
 |

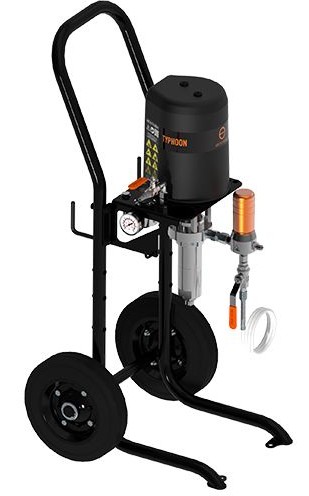

Elcometer Typhoon Airless Pump |
| Part Number : PS32AL-T | |
 |
Elcometer Typhoon Airless Pump – Sagola 104 PSAM Airless Spray Gun |
| Part Number : TY32-PS104 | |
 |
Elcometer Typhoon Airless Pump – Sagola 500 PSAM Airless Spray Gun |
| Part Number : TY32-PS500 | |
 |
Piston Seal Packing Oil; 500ml |
| Part Number : PT30090100 | |
Accessories
| Analogue Pressure Gauge 0 – 12bar | ||
| Part Number: | PT54550016 | |
| Suction Filter 1/2″ | ||
 |
Part Number: | PT83660047 |
| Hopper Kit & Product Filter | ||
 |
Part Number: | PT30090399 |
| Airless Product Hose; 5m | ||
 |
Part Number: | PT86463826 |
| Airless Product Hose; 10m | ||
|
Part Number: | PT86463827 |
| Airless Product Hose; 15m | ||
|
Part Number: | PT86463828 |
| Sagola 104 PSAM Airless Spray Gun with Reversible Tip Spray Guard | ||
 |
Part Number: | PG30170109 |
| Sagola 107 PSAM Airless Spray Gun with Reversible Tip Spray Guard | ||
 |
Part Number: | PG30170110 |
| Sagola 500 PSAM Airless Spray Gun with Reversible Tip Spray Guard | ||
 |
Part Number: | PG30170111 |
| Hopper Product Filter: 40 Mesh | ||
| Part Number: | PT83660001 | |
| Hopper Product Filter Spring Clip | ||
| Part Number: | PT84760004 | |
| Anti-Pulsation System Filter: 100 Mesh | ||
| Part Number: | PT83660009 | |
| Anti-Pulsation System Filter: 60 Mesh | ||
| Part Number: | PT83660010 | |
| Suction Hose complete with Suction Hose Product Filter | ||
| Part Number: | PT86465206 | |
| Product Return Valve & Hose Replacement Kit | ||
| Part Number: | PT84260099 | |
| Anti-Pulsation System | ||
| Part Number: | PT56413511 | |
| Piston Cylinder Lower Packing Set | ||
| Part Number: | PT56418545 | |
| Piston Cylinder Upper Packing Set | ||
| Part Number: | PT56418546 | |
| Piston (Upper) Valve Kit | ||
| Part Number: | PT56418474 | |
| Suction (Lower) Valve Kit | ||
| Part Number: | PT56418543 | |
| Piston Cylinder Sealing Gasket | ||
| Part Number: | PT54210278 | |
| Air Motor Cylinder Piston Seal | ||
| Part Number: | PT56418541 | |
| Air Motor Packing Set | ||
| Part Number: | PT56418651 | |
