Elcometer RIGA Vertical Bellows
Product Description
The gentle pumping action of the Elcometer RIGA V air assisted airless pump, with its vertical bellows – combined with reduced sealing surfaces, provides excellent fluid handling and supply of shear-sensitive materials, including UV coatings and waterborne materials.
Precision engineered and designed for handling of shear sensitive, moisture-sensitive materials and UV coatings, the Elcometer RIGA range is ideal for automated paint lines where performance, reliability and coating stability matter most.
Smooth internal paint flow
Ideal for flat bed coating systems, the gentle bellows action of the Elcometer Riga pump prevents paint bubbling of sheer sensitive materials such as varnishes UV-cure coatings, high-solid waterborne and solvent based materials.
Durable and reliable
With minimal working parts to replace, the tough stainless steel and aluminium construction of the Elcometer Riga provides long-lasting durability with minimal maintenance, even for highly demanding materials.
Enclosed bellows system
The Elcometer Riga ensures no air or moisture contamination – ideal for moisture sensitive coatings even when if it fails, thanks its closed system with no exposed seals or packing.
Easy to use and maintain
Elcometer Riga bellows pumps are easy to operate and simple to maintain.
Key Features

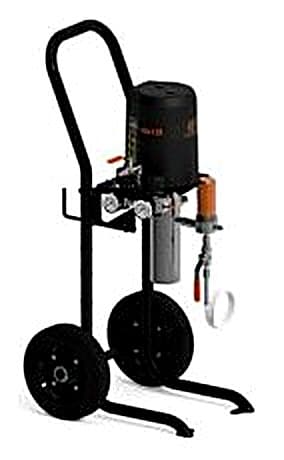

Elcometer RIGA Vertical Bellows
1) Low air consumption air motor 0.86cfm for improved efficiency and low running costs
2) Anti-pulse fluid filter fitted as standard ensures consistent spraying
3) Rugged stainless steel and aluminium pump construction handles a wide variety of fluid types
4) Smooth bellows action for uniform paint flow, engineered for use with sheer sensitive coatings
5) No exposed seals or packing reduces maintenance or contamination
6) Easy to flush through for fast colour changes
7) Fluid and air regulator included as standard for consistent control of fluid & air pressure
8) Fewer working parts to replace, enhanced reliability and less down time
9) Each pump is fitted on to a rugged & ergonomic trolley with built-in hose & gun rack, for easy movement around site – unbolt the bracket and pump from
the trolley to wall mount
10) Wall mounted with suction hose only 12kg
Specifications
| RIGA H10 | RIGA H15 | RIGA H25 | RIGA V25 | |
| Ratio | 10 : 1 | 15 : 1 | 25 : 1 | 25 : 1 |
| Maximum fluid particle size** | 0.25mm (10mils) | 0.25mm (10mils) | 0.25mm (10mils) | 0.25mm (10mils) |
| Fluid temperature range | 4.4 – 60°C | 4.4 – 60°C | 4.4 – 60°C | 4.4 – 60°C |
| Fluid inlet size | Metric 36 x 2 (Male) | Metric 36 x 2 (Male) | Metric 36 x 2 (Male) | 3/4” BSP Male |
| Fluid outlet size | 1/4” BSP Male | 1/4” BSP Male | 1/4” BSP Male | 1/4” BSP Male |
| COMPOSITION OF PARTS IN CONTACT WITH PRODUCT (WET) | ||||
| Seats | Stainless Steel | Stainless Steel | Stainless Steel | Polyamide |
| Balls | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Pump Body / Cylinder Housing | Aluminium | Aluminium | Aluminium | Aluminium |
| Centre Section | Hard Chrome Stainless Steel | Hard Chrome Stainless Steel | Hard Chrome Stainless Steel | Hard Chrome Stainless Steel |
| Packing Kit (Top) | Polyethylene, Stainless Steel | Polyethylene, Stainless Steel | Polyethylene, Stainless Steel | Polyethylene, Stainless Steel |
| Packing Kit (Bottom) | – | – | – | Polyethylene, Stainless Steel |
| EXTERNAL PUMP PARTS (DRY) | ||||
| Pump Body / Cylinder Housing | Aluminium | Aluminium | Aluminium | Aluminium |
| AIR | ||||
| Air Pressure Operating Range | 1-6bar | 1-6bar | 1-6bar | 1-7bar |
| Air Consumption at 60 bar & 2.4 CPM | 16.71lpm | 13.85lpm | 14.96lpm | – |
| Air Consumption at 100bar & 5.7 CPM | – | – | – | 24.31lpm |
| Maximum Air Inlet Pressure | 6bar | 6bar | 6bar | 7bar |
| Air Inlet | 1/4” BSP Female | 1/4” BSP Female | 1/4” BSP Female | 1/4” BSP Female |
| Air Exhaust / Silencer Port | 1/4” BSP Female | 1/4” BSP Female | 1/4” BSP Female | 1/4” BSP Female |
| Compressor Requirements (Minimum) | 16.71lpm | 13.85lpm | 14.96lpm | 24.31lpm |
| Ambient Air Temperature Operating Range | -10 – 60°C | -10 – 60°C | -10 – 60°C | -10 – 60°C |
| FLUID / PRODUCT | ||||
| Maximum Fluid Outlet Working Pressure | 66bar | 82bar | 148bar | 176bar |
| Stroke Length | 42mm | 42mm | 42mm | 44mm |
| Maximum Spray Tip Size | – | – | – | 0.45m |
| Product Output per Cycle | 105.55 cc | 105.55 cc | 105.55 cc | 42.33 cc |
| Free Flow Delivery @ 60 CPM* | 9.75 lpm | 9.75 lpm | 9.75 lpm | 2.54 lpm |
| DIMENSIONS | ||||
| Weight (Pump only) | 24kg | 25kg | 31kg | 9.7kg |
| Weight (Wall Mount with Suction Hose) | 26.3kg | 27.3kg | 33.3kg | 12kg |
| Weight (Cart Mount with Suction Hose) | 37.5kg | 38.5kg | 44.5kg | 24.5kg |
| Dimensions (Cart Mount) | 543 x 527 x 999mm | 543 x 527 x 999mm | 543 x 527 x 999mm | 439 x 490 x 999mm |
| Dimensions (Wall Mount) | 543 x 359 x 516mm | 543 x 359 x 516mm | 543 x 359 x 516mm | 332 x 294 x 527mm |
Data Sheet
Part Numbers
 |

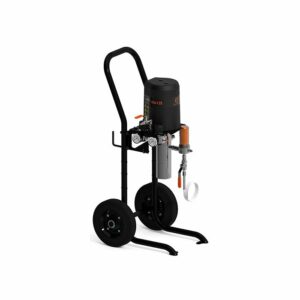

Elcometer Riga V25 Air Assisted Airless Bellows Piston Spray Pump |
| Part Number : PSPB25AAA-T | |
 |
Elcometer Riga V25 Air Assisted Airless Bellows Piston Spray Pump & Sagola Mini Xtreme Mix Spray gun with 13/40 Spray Tip |
| Part Number : RV25-MXM-1340 | |
|
Elcometer Riga V25 Air Assisted Airless Bellows Piston Spray Pump & Sagola Mini Xtreme Mix Spray Gun with 11/40 Spray Tip |
| Part Number : RV25-MXM-1140 | |
Accessories
| Combined Air & Product Hose with Protective Cover; 7m | ||
 |
Part Number: | PT56414036 |
| Combined Air & Product Hose with Protective Cover; 11m | ||
|
Part Number: | PT56414037 |
| Sagola Mini Xtreme Mix with 8mm Quick Connect Air Coupling and 1/4″ Swivel Product Coupling, with Air Assisted Airless Spray Tip 11/40: 0.011″/0.28mm, 40 Degree |
||
 |
Part Number: | PG35130202 |
| Sagola Mini Xtreme Mix with 8mm Quick Connect Air Coupling and 1/4″ Swivel Product Coupling, with Air Assisted Airless Spray Tip 13/40: 0.013″/0.33mm, 40 Degree |
||
|
Part Number: | PG35130206 |
| Sagola V7 Mix Standard Automatic Spray Gun with 13/40 Spray Tip | ||
 |
Part Number: | PG35230101 |
| Sagola V7 Mix Robot Automatic Spray Gun with 13/40 Spray Tip | ||
|
Part Number: | PG35230102 |
