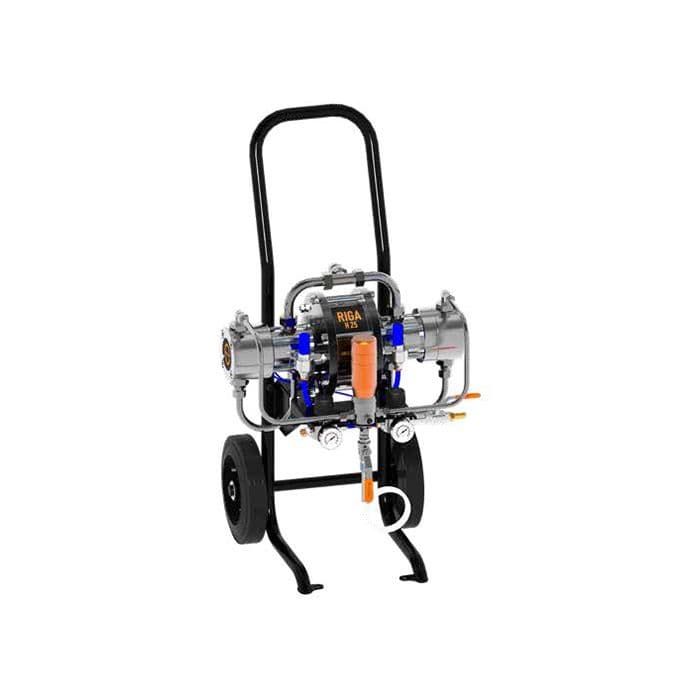

Elcometer RIGA Horizontal Bellows
Product Description
Multi spray gun feeding capabilities, the powerful Elcometer RIGA H is an air assisted airless horizontal bellows pump with a smooth bellows action for uniform material flow.
Precision engineered and designed for handling of shear sensitive, moisture-sensitive materials and UV coatings, the Elcometer RIGA range is ideal for automated paint lines where performance, reliability and coating stability matter most.
Smooth internal paint flow
Ideal for flat bed coating systems, the gentle bellows action of the Elcometer Riga pump prevents paint bubbling of sheer sensitive materials such as varnishes UV-cure coatings, high-solid waterborne and solvent based materials.
Durable and reliable
With minimal working parts to replace, the tough stainless steel and aluminium construction of the Elcometer Riga provides long-lasting durability with minimal maintenance, even for highly demanding materials.
Enclosed bellows system
The Elcometer Riga ensures no air or moisture contamination – ideal for moisture sensitive coatings even when if it fails, thanks its closed system with no exposed seals or packing.
Easy to use and maintain
Elcometer Riga bellows pumps are easy to operate and simple to maintain.
Key Features
Thanks to its closed pump design and leak proof system, there is no air or moisture contamination – ideal for moisture sensitive coatings.
1) Low maintenance 16.71lpm air motor for large automated paint
lines
2) Pump fluid section manufactured from stainless steel to handle solvent & waterbased coatings
3) High flow 9.75lpm engineered to supply multiple guns
4) Smooth bellows action for uniform paint flow, engineered for use with sheer sensitive coatings
5) Anti-pulse fluid filter fitted as standard ensures constant spray pattern and uniform film thickness
6) Fluid and air regulator included as standard for consistent control of fluid & air pressure
7) No exposed seals or packing reduces maintenance or contamination

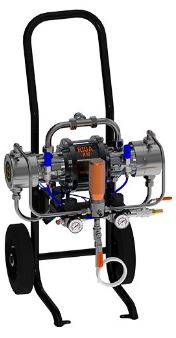

8) Each pump is fitted onto a rugged & ergonomic trolley with builtin
hose & gun rack, for easy movement around site – unbolt the bracket and pump from the trolley to wall mount
Elcometer RIGA H25 weight complete with suction hose: 33.3kg
Specifications
| RIGA H10 | RIGA H15 | RIGA H25 | RIGA V25 | |
| Ratio | 10 : 1 | 15 : 1 | 25 : 1 | 25 : 1 |
| Maximum fluid particle size** | 0.25mm (10mils) | 0.25mm (10mils) | 0.25mm (10mils) | 0.25mm (10mils) |
| Fluid temperature range | 4.4 – 60°C | 4.4 – 60°C | 4.4 – 60°C | 4.4 – 60°C |
| Fluid inlet size | Metric 36 x 2 (Male) | Metric 36 x 2 (Male) | Metric 36 x 2 (Male) | 3/4” BSP Male |
| Fluid outlet size | 1/4” BSP Male | 1/4” BSP Male | 1/4” BSP Male | 1/4” BSP Male |
| COMPOSITION OF PARTS IN CONTACT WITH PRODUCT (WET) | ||||
| Seats | Stainless Steel | Stainless Steel | Stainless Steel | Polyamide |
| Balls | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Pump Body / Cylinder Housing | Aluminium | Aluminium | Aluminium | Aluminium |
| Centre Section | Hard Chrome Stainless Steel | Hard Chrome Stainless Steel | Hard Chrome Stainless Steel | Hard Chrome Stainless Steel |
| Packing Kit (Top) | Polyethylene, Stainless Steel | Polyethylene, Stainless Steel | Polyethylene, Stainless Steel | Polyethylene, Stainless Steel |
| Packing Kit (Bottom) | – | – | – | Polyethylene, Stainless Steel |
| EXTERNAL PUMP PARTS (DRY) | ||||
| Pump Body / Cylinder Housing | Aluminium | Aluminium | Aluminium | Aluminium |
| AIR | ||||
| Air Pressure Operating Range | 1-6bar | 1-6bar | 1-6bar | 1-7bar |
| Air Consumption at 60 bar & 2.4 CPM | 16.71lpm | 13.85lpm | 14.96lpm | – |
| Air Consumption at 100bar & 5.7 CPM | – | – | – | 24.31lpm |
| Maximum Air Inlet Pressure | 6bar | 6bar | 6bar | 7bar |
| Air Inlet | 1/4” BSP Female | 1/4” BSP Female | 1/4” BSP Female | 1/4” BSP Female |
| Air Exhaust / Silencer Port | 1/4” BSP Female | 1/4” BSP Female | 1/4” BSP Female | 1/4” BSP Female |
| Compressor Requirements (Minimum) | 16.71lpm | 13.85lpm | 14.96lpm | 24.31lpm |
| Ambient Air Temperature Operating Range | -10 – 60°C | -10 – 60°C | -10 – 60°C | -10 – 60°C |
| FLUID / PRODUCT | ||||
| Maximum Fluid Outlet Working Pressure | 66bar | 82bar | 148bar | 176bar |
| Stroke Length | 42mm | 42mm | 42mm | 44mm |
| Maximum Spray Tip Size | – | – | – | 0.45m |
| Product Output per Cycle | 105.55 cc | 105.55 cc | 105.55 cc | 42.33 cc |
| Free Flow Delivery @ 60 CPM* | 9.75 lpm | 9.75 lpm | 9.75 lpm | 2.54 lpm |
| DIMENSIONS | ||||
| Weight (Pump only) | 24kg | 25kg | 31kg | 9.7kg |
| Weight (Wall Mount with Suction Hose) | 26.3kg | 27.3kg | 33.3kg | 12kg |
| Weight (Cart Mount with Suction Hose) | 37.5kg | 38.5kg | 44.5kg | 24.5kg |
| Dimensions (Cart Mount) | 543 x 527 x 999mm | 543 x 527 x 999mm | 543 x 527 x 999mm | 439 x 490 x 999mm |
| Dimensions (Wall Mount) | 543 x 359 x 516mm | 543 x 359 x 516mm | 543 x 359 x 516mm | 332 x 294 x 527mm |
Data Sheet
Part Numbers
 |
Elcometer Riga H10 Air Assisted Airless Bellows Piston Spray Pump |
| Part Number : PSPBH10AAA-T | |
|
Elcometer Riga H15 Air Assisted Airless Bellows Piston Spray Pump |
| Part Number : PSPBH15AAA-T | |
|
Elcometer Riga H25 Air Assisted Airless Bellows Piston Spray Pump |
| Part Number : PSPBH25AAA-T | |
 |
Elcometer Riga H10 Air Assisted Airless Bellows Piston Spray Pump & Sagola Mini Xtreme Mix Spray Gun with 13/40 Spray Tip |
| Part Number : RH10-MXM-1340 | |
|
Elcometer Riga H10 Air Assisted Airless Bellows Piston Spray Pump & Sagola Mini Xtreme Mix Spray Gun with 11/40 Spray Tip |
| Part Number : RH10-MXM-1140 | |
|
Elcometer Riga H15 Air Assisted Airless Bellows Piston Spray Pump & Sagola Mini Xtreme Mix Spray Gun with 13/40 Spray Tip |
| Part Number : RH15-MXM-1340 | |
|
Elcometer Riga H15 Air Assisted Airless Bellows Piston Spray Pump & Sagola Mini Xtreme Mix Spray Gun with 11/40 Spray Tip |
| Part Number : RH15-MXM-1140 | |
|
Elcometer Riga H25 Air Assisted Airless Bellows Piston Spray Pump & Sagola Mini Xtreme Mix Spray Gun with 13/40 Spray Tip |
| Part Number : RH25-MXM-1340 | |
|
Elcometer Riga H25 Air Assisted Airless Bellows Piston Spray Pump & Sagola Mini Xtreme Mix Spray Gun with 11/40 Spray Tip |
| Part Number : RH25-MXM-1140 | |
 |
Elcometer Riga H25 Air Assisted Airless Bellows Piston Spray Pump – Sagola V7 Mix Standard Automatic Spray Gun |
| Part Number : RH25-V7S-1340 | |
|
Elcometer Riga H25 Air Assisted Airless Bellows Piston Spray Pump – Sagola V7 Mix Robotic Automatic Spray Gun |
| Part Number : RH25-V7R-1340 | |
Accessories
| Combined Air & Product Hose with Protective Cover; 7m | ||
 |
Part Number: | PT56414036 |
| Combined Air & Product Hose with Protective Cover; 11m | ||
|
Part Number: | PT56414037 |
| Sagola Mini Xtreme Mix with 8mm Quick Connect Air Coupling and 1/4″ Swivel Product Coupling, with Air Assisted Airless Spray Tip 11/40: 0.011″/0.28mm, 40 Degree |
||
 |
Part Number: | PG35130202 |
| Sagola Mini Xtreme Mix with 8mm Quick Connect Air Coupling and 1/4″ Swivel Product Coupling, with Air Assisted Airless Spray Tip 13/40: 0.013″/0.33mm, 40 Degree |
||
|
Part Number: | PG35130206 |
| Sagola V7 Mix Standard Automatic Spray Gun with 13/40 Spray Tip | ||
 |
Part Number: | PG35230101 |
| Sagola V7 Mix Robot Automatic Spray Gun with 13/40 Spray Tip | ||
|
Part Number: | PG35230102 |
