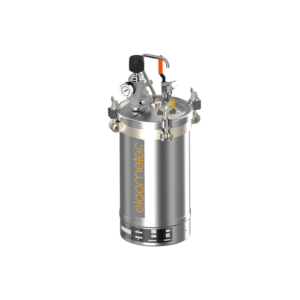

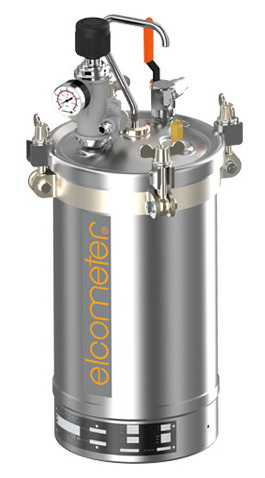

Elcometer P10TS Pressure Tank
Product Description
The Elcometer P10TS Pressure Tank has a 10 Litre tank capacity and is suitable for use with adhesives.
- Suitable for adhesive products.
- Safety compliant to International Standards.
- Body and lid in stainless Steel.
- Top outlet connection.
- Single pressure regulator with discharge valve, to safely regulate
both the spray gun and pot pressure. - Ideal for use with two spray guns.
- Optional stainless steel reusable pressure pot liner.
Full equipment kit available:
Elcometer P10T Pressure Tank; 10 Litre & 6m Combined Anti-Static Air & Product Hose
Compliance:
SPAIN: AP 1070 FBZ 2330, FRANCE: CODAP
UK: BS 1101-1977, GERMANY: A.D. Merkblätter
ATEX 2 II GX, 2014/68/CE, UKCA
Specifications
| Tank Capacity | 10l |
| Agitator Type | Manual |
| Product Outlet Position | Top |
| Construction Material | Stainless Steel Body & Lid |
| Working Pressure (Max) | 7bar |
| Air Inlet Connection | 6.35mm BSP Male |
| Product Outlet Connection | 9.52mm Male BSP |
| Air Pressure Gauge | 0 – 8bar |
| Product Pressure Gauge | – |
| Operating Temperature | 0 – 50°C |
| Dimensions (up to lid) | 208 x 208 x 375mm |
| Weight | 11.2kg |
| Packing List | Elcometer P10T Pressure Tank; 10 Litre & 6m Combined Anti-Static Air & Product Hose2 |
| Suitable for | Adhesives |
Data Sheet
Part Numbers
 | ELCOMETER P10TS 10L Stainless Steel Pressure Tank for Adhesives with Sagola X 4100 spray gun, 20A aircap, 1.80 needle & nozzle |
| Part Number : PP10TS-X41-20A18 | |
 | Elcometer P10TS Tank; 10 Litre |
| Part Number : PP10TS | |
 | 10L Interchangeable Tank |
| Part Number : PT52411607 | |
Accessories
| Anti-static Air Hose – 6m Ø 8x15mm | ||
 | Part Number: | PT56414024 |
| Anti-static Air Hose – 11m Ø 8x15mm | ||
| Part Number: | PT56414025 |
| Anti-static Air Hose – 16m Ø 8x15mm | ||
| Part Number: | PT56414027 |
| Anti-static Air Hose – 26m Ø 8x15mm | ||
| Part Number: | PT56414026 |
| Anti-static Air Hose – 21m Ø 8x15mm | ||
| Part Number: | PT56414028 |
| 6m (Thermo Rubber Product Hose with 3/8″ Female Connection | ||
 | Part Number: | PT56414116 |
| 11m Thermo Rubber Product Hose with 3/8″ Female Connection | ||
| Part Number: | PT56414117 |
| 16m Thermo Rubber Product Hose with 3/8″ Female Connection | ||
| Part Number: | PT56414115 |
| 10m Product Hose (ID: 8mm x OD: 16mm) with 3/8″ Female Swivel Coupling Connections | ||
 | Part Number: | PT56414112 |
| 5m Product Hose (ID: 19mm x OD: 23mm) with 3/4″ Female Swivel Coupling Connections | ||
| Part Number: | PT56414111 |
| 15m Product Hose (ID: 19mm x OD: 23mm) with 3/4″ Female Swivel Coupling Connections | ||
| Part Number: | PT56414113 |
| 21m Thermo Rubber, ID: 8mm x OD: 16mm with 3/8″ Female Connection | ||
 | Part Number: | PT56414118 |
| 26m Thermo Rubber, ID: 8mm x OD: 16mm with 3/8″ Female Connection | ||
| Part Number: | PT56414119 |
