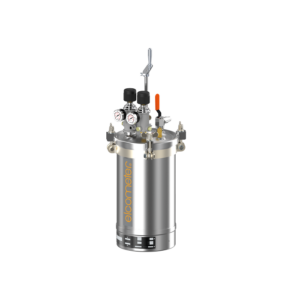

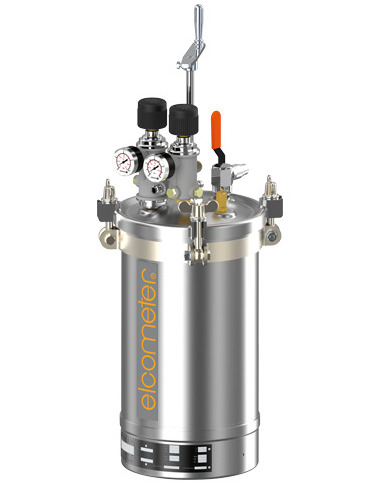

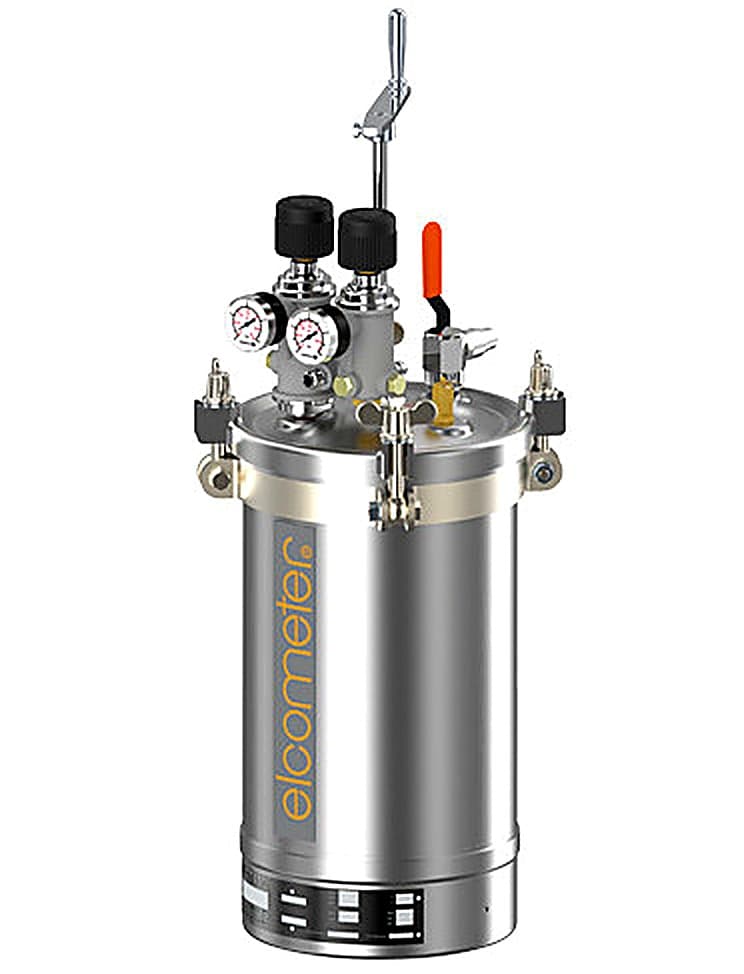

Elcometer P10T Pressure Tank
Product Description
The Elcometer P10T Pressure Tank has a 10 Litre tank capacity and is suitable for solvent and water-based paints.
The dual air regulator with discharge valve, regulates spray guna nd pot pressure independently.
- Suitable for solvent and water-based paints.
- Safety compliant to International Standards.
- Body and lid in stainless Steel.
- Top outlet connection.
- Dual air regulator with discharge valve, to regulate spray gun and pot pressure independently.
- Ideal for use with two spray guns.
- Optional stainless steel reusable pressure pot liner.
- Manual mixer.
Full equipment kit available:
Elcometer P10TS Pressure Tank; 10 Litre & 5m Combined Anti-Static Air & Product Hose
Compliance:
CE, UKCA
ATEX 2 II GX
Specifications
| Tank Capacity | 10l |
| Agitator Type | None |
| Product Outlet Position | Top |
| Construction Material | Stainless Steel Body & Lid |
| Working Pressure (Max) | 4bar |
| Air Inlet Connection | 6.35mm BSP Male |
| Product Outlet Connection | 9.52mm Male BSP |
| Air Pressure Gauge | 0 – 4bar |
| Product Pressure Gauge | 0 – 8bar |
| Operating Temperature | 0 – 50°C |
| Dimensions (up to lid) | 208 x 208 x 375mm |
| Weight | 10.0kg |
| Packing List | Elcometer P10TS Pressure Tank; 10 Litre & 5m Combined Anti-Static Air & Product Hose2 |
| Suitable for | Solvent & waterbased products |
Data Sheet
Part Numbers
 |
Elcometer P10T Tank; 10 Litre |
| Part Number : PP10T-MA | |
 |
10L Interchangeable Tank |
| Part Number : PT52411607 | |
 |
Elcometer P10T 10L Stainless Steel Pressure Tank with Sagola X 4100 spray gun, 765 aircap, 1.20 needle & nozzle |
| Part Number : PP10TMA-X41-76512 | |
|
Elcometer P10T 10L Stainless Steel Pressure Tank with Sagola X 4100 spray gun, 777 aircap, 1.00 needle & nozzle |
| Part Number : PP10TMA-X41-77710 | |
|
Elcometer P10T 10L Stainless Steel Pressure Tank with Sagola X 4100 spray gun, SuperVIT aircap, 1.20 needle & nozzle |
| Part Number : PP10TMA-X41-VIT12 | |
|
ELCOMETER P10T 10L Stainless Steel Pressure Tank with Sagola X 4100 spray gun, 3030 aircap, 1.20 needle & nozzle |
| Part Number : PP10TMA-X41-303012 | |
|
Elcometer P10T 10L Stainless Steel Pressure Tank with Sagola X 4100 spray gun, 3030 aircap, 1.40 needle & nozzle |
| Part Number : PP10TMA-X41-303014 | |
|
Elcometer P10T 10L Stainless Steel Pressure Tan with Sagola X 4100 spray gun, XT01B aircap, 1.20 needle & nozzle |
| Part Number : PP10TMA-X41-XT01B12 | |
|
Elcometer P10T 10L Stainless Steel Pressure Tank with Sagola X 4100 spray gun, XT01B aircap, 1.40 needle & nozzle |
| Part Number : PP10TMA-X41-XT01B14 | |
Accessories
| 6m Thermo Rubber Product Hose with 3/8″ Female Connection | ||
 |
Part Number: | PT56414116 |
| 11m Thermo Rubber Product Hose with 3/8″ Female Connection | ||
|
Part Number: | PT56414117 |
| 16m Thermo Rubber Product Hose with 3/8″ Female Connection | ||
|
Part Number: | PT56414115 |
| 10m Product Hose (ID: 8mm x OD: 16mm) with 3/8″ Female Swivel Coupling Connections | ||
 |
Part Number: | PT56414112 |
| 5m Product Hose (ID: 19mm x OD: 23mm) with 3/4″ Female Swivel Coupling Connections | ||
|
Part Number: | PT56414111 |
| 15m Product Hose (ID: 19mm x OD: 23mm) with 3/4″ Female Swivel Coupling Connections | ||
|
Part Number: | PT56414113 |
| 21m Thermo Rubber, ID: 8mm x OD: 16mm with 3/8″ Female Connection | ||
 |
Part Number: | PT56414118 |
| 26m Thermo Rubber, ID: 8mm x OD: 16mm with 3/8″ Female Connection | ||
|
Part Number: | PT56414119 |
