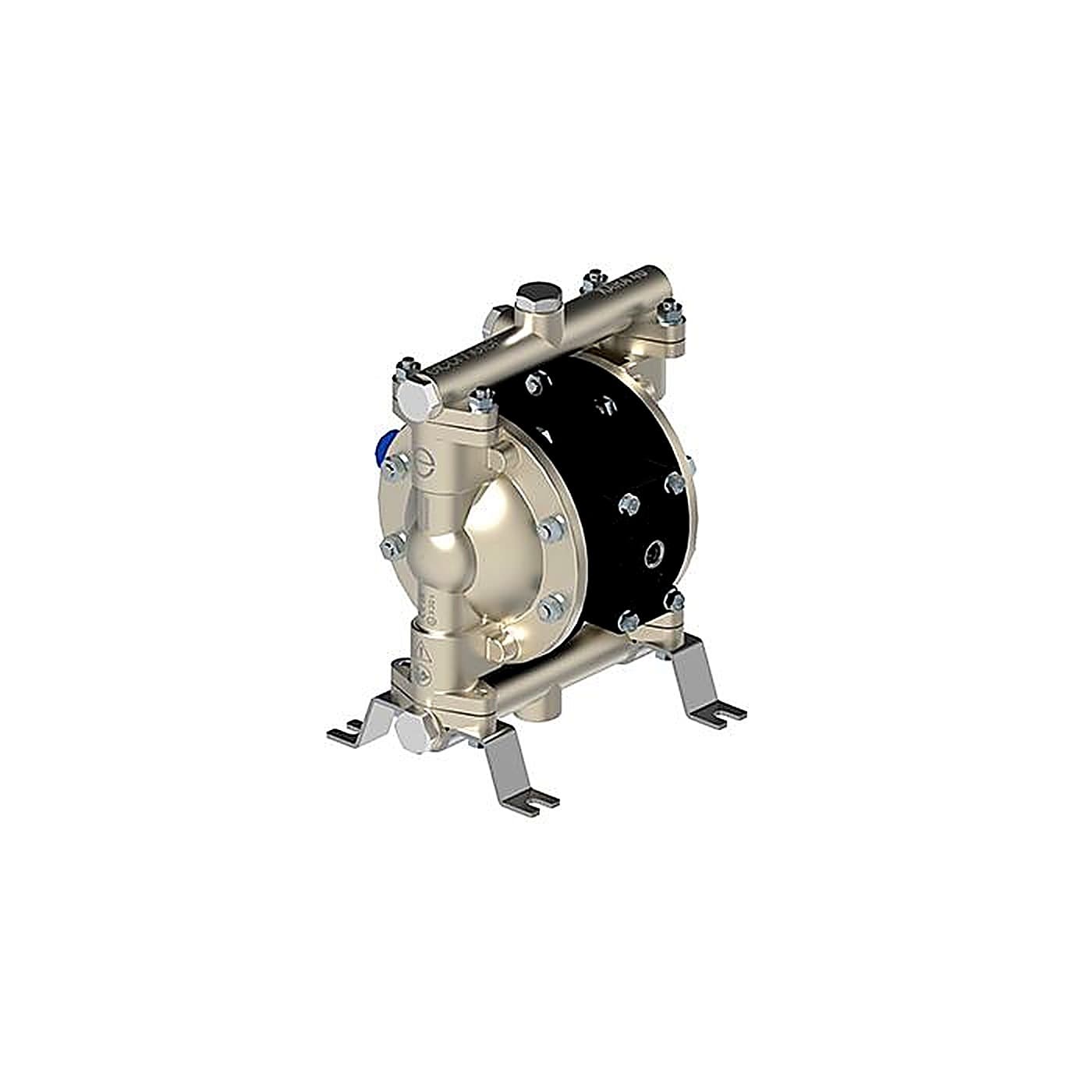

Elcometer KARA Double Diaphragm Transfer Pumps
Product Description
Ideal for use with water and solvent based materials, the Elcometer KARA double diaphragm transfer pumps are engineered to quickly and consistently supply fluid smoothly. With high 30-40 litres per minute fluid delivery capacity, a smooth air change over valve and aluminium, stainless steel & PTFE polyamide construction Elcometer KARA transfer pumps are built to last.
Powerful performance
With up to 40 litres per minute maximum free flow, the Elcometer Kara’s powerful fluid circulation keeps paint homogenous whilst ensuring pulse-free material flows to the application points, even with long fluid hoses. In fact, the Elcometer Kara’s high performance can support multiple spray guns at once.
Robust
Rugged stainless steel and aluminium construction to handle a wide variety of fluid types.
Excellent cost of ownership
Designed with low air consumption, the Elcometer Kara helps to lower expensive compressor running costs.
Versatile
Whether you are working with water based, solvent based or abrasive materials there is an Elcometer Kara Transfer Pump available with optional drum lid and rotary agitator to suit your requirements.
Key Features
1) 40lpm fluid delivery capacity
2) Versatile front and top fluid outlets for ease of use
3) Low pulsing air distribution manifold uses durable metal to metal technology to prevent pump stalling
4) KARA 40 supplied with Polypropylene seats and PTFE balls for water based and solvent materials
5) Durable lightweight anodized aluminium pump housing
6) Fast and easy to service on site using standard tools to reduce downtime
7) KARA 40A Abrasive Transfer Pump is supplied with stainless steel balls and seats to suit ceramic based materials
8) Versatile front and top fluid outlets for ease of use
9) Stainless steel balls and seats for water based and semi viscous materials
10) Modular air valve provides smooth and rapid changeover for increased efficiency and minimised down time
11) Durable lightweight anodized aluminium pump housing
12) Lightweight, anti-corrosive Polyethylene (LDPE) centre housing
13) Available with 200 litre drum lid and rotary agitator
Specifications
| KARA 30 | KARA 40 | KARA 40A | |
| Ratio | 1 : 1 | 1 : 1 | 1 : 1 |
| Maximum fluid particle size** | 0.25mm (10mils) | 0.25mm (10mils) | 0.25mm (10mils) |
| Fluid temperature range | 4.4 – 60°C | 4.4 – 60°C | 4.4 – 60°C |
| Fluid inlet size | 1/2” BSP Male | 1/2” BSP Male | 1/2” BSP Male |
| Fluid outlet size | 1/2” BSP Male | 1/2” BSP Male | 1/2” BSP Male |
| Compatible Products that can be pumped | Solvent and waterbased products | Solvent and waterbased products | Abrasive, solvent and waterbased products |
| COMPOSITION OF PARTS IN CONTACT WITH PRODUCT (WET) | |||
| Seats | Stainless Steel | Polypropylene | Stainless Steel |
| Balls | Stainless Steel | PTFE | Stainless Steel |
| Diaphragm | Polyethylene | PTFE | PTFE |
| Pump Body / Cylinder Housing | Polyethylene / Aluminium | PTFE / Aluminium | PTFE / Aluminium |
| Centre Section | Aluminium | Polyamide | Polyamide |
| EXTERNAL PUMP PARTS (DRY) | |||
| Pump Body / Cylinder Housing | Polyamide / Aluminium | Polyamide / Aluminium | Polyamide / Aluminium |
| AIR | |||
| Air Pressure Operating Range | 1-6bar | 1-7bar | 1-7bar |
| Air Consumption at 3 bar & 7.5 CPM | 1.8lpm | – | – |
| Air Consumption at 3 bar & 16 CPM | – | 7.92lpm | 7.92lpm |
| Maximum Air Inlet Pressure | 6bar | 7bar | 7bar |
| Air Inlet | 1/4” BSP Female | 1/4” BSP Female | 1/4” BSP Female |
| Air Exhaust / Silencer Port | 1/2” BSP Female | 1/2” BSP Female | 1/2” BSP Female |
| Compressor Requirements (Minimum) | No Minimum | No Minimum | No Minimum |
| Ambient Air Temperature Operating Range | 4.4 – 60°C | 4.4 – 60°C | 4.4 – 60°C |
| FLUID / PRODUCT | |||
| Maximum Fluid Outlet Working Pressure | 6bar | 7bar | 7bar |
| Product Output per Cycle | 80 cc | 165 cc | 165 cc |
| Maximum Free Flow | 30 lpm | 40 lpm | 40 lpm |
| Free Flow Delivery @ 60 CPM* | 4.8 lpm | 10 lpm | 10 lpm |
| DIMENSIONS | |||
| Weight (Pump only) | 3.3 kg | 4.6kg | 4.8kg |
| Dimensions (Wall Mount) | 185 x 141 x 215mm | 210 x 204 x 270mm | 210 x 204 x 270mm |
Data Sheet
Elcometer KARA Double Diaphragm Transfer Pumps – Data Sheet
Elcometer-KARA-Double-Diaphragm-Transfer-Pumps Data Sheet
Part Numbers
 |
Elcometer Kara 30 Double Diaphragm Transfer Pump |
| Part Number : PTD130AS | |
 |
Elcometer Kara 40 Double Diaphragm Transfer Pump |
| Part Number : PTD140AS | |
|
|
Elcometer Kara 40A Double Diaphragm Transfer Pump for Abrasive Materials |
| Part Number : PTD140AAS | |
 |
Elcometer 200 Drum Cover with Elcometer Kara 40 Double Diaphragm Transfer Pump |
| Part Number : PSD140AS-C | |
|
|
Elcometer 200 Drum Cover with Elcometer Kara 40 Double Diaphragm Transfer Pump & Rotary Agitator |
| Part Number : PSD140AS-C-RA | |
Accessories
| Anti-static Air Hose – 6m Ø 8x15mm | ||
 |
Part Number: | PT56414024 |
| Anti-static Air Hose – 11m Ø 8x15mm | ||
|
|
Part Number: | PT56414025 |
| Anti-static Air Hose – 16m Ø 8x15mm | ||
|
|
Part Number: | PT56414027 |
| Anti-static Air Hose – 26m Ø 8x15mm | ||
|
|
Part Number: | PT56414026 |
| 1.8m Covered Anti-Static Air & Nylon Product Hose | ||
 |
Part Number: | PT56414130 |
| 5m Covered Anti-Static Air & Nylon Product Hose | ||
|
|
Part Number: | PT56414039 |
| 7.5m Covered Anti-Static Air & Nylon Product Hose | ||
|
|
Part Number: | PT56414044 |
| 10m Covered Anti-Static Air & Nylon Product Hose | ||
|
|
Part Number: | PT56414040 |
| 15m Covered Anti-Static Air & Nylon Product Hose | ||
|
|
Part Number: | PT56414041 |
| 20m Covered Anti-Static Air & Nylon Product Hose | ||
|
|
Part Number: | PT56414042 |
| Anti-static Air Hose – 21m Ø 8x15mm | ||
|
|
Part Number: | PT56414028 |
| 6m Thermo Rubber Product Hose with 3/8″ Female Connection | ||
 |
Part Number: | PT56414116 |
| 11m Thermo Rubber Product Hose with 3/8″ Female Connection | ||
|
|
Part Number: | PT56414117 |
| 16m Thermo Rubber Product Hose with 3/8″ Female Connection | ||
|
|
Part Number: | PT56414115 |
| 21m Thermo Rubber, ID: 8mm x OD: 16mm with 3/8″ Female Connection | ||
 |
Part Number: | PT56414118 |
| 26m Thermo Rubber, ID: 8mm x OD: 16mm with 3/8″ Female Connection | ||
|
|
Part Number: | PT56414119 |
