Elcometer KARA Air Operated Double Diaphragm Pumps

The Elcometer KARA pumps are a range of air operated double diaphragm pumps for conventional air spray applications. Engineered to supply high-quality coating materials for wood, plastic, metal or ceramics.

Summary

Powerful performance
Elcometer Kara’s high fluid delivery keeps paint homogenous whilst ensuring more than enough pulse-free flow at the nozzle, even with long fluid hoses up to 30m. In fact, with up to 40 litres per minute (10.6gpm) maximum free flow, the Elcometer Kara’s high performance can supply a second spray gun.

Durable and hardwearing
Its rugged stainless steel and aluminium construction ensures the Elcometer Kara has low maintenance and a long service life.

Efficient
With an air consumption of 0.28cfm the Elcometer Kara ensures economical compressor running costs.

Versatile
Choice of suction hose or product tank, suitable for spraying solvent or waterborne coatings, primers, fillers, stains and lacquers.

Key Features

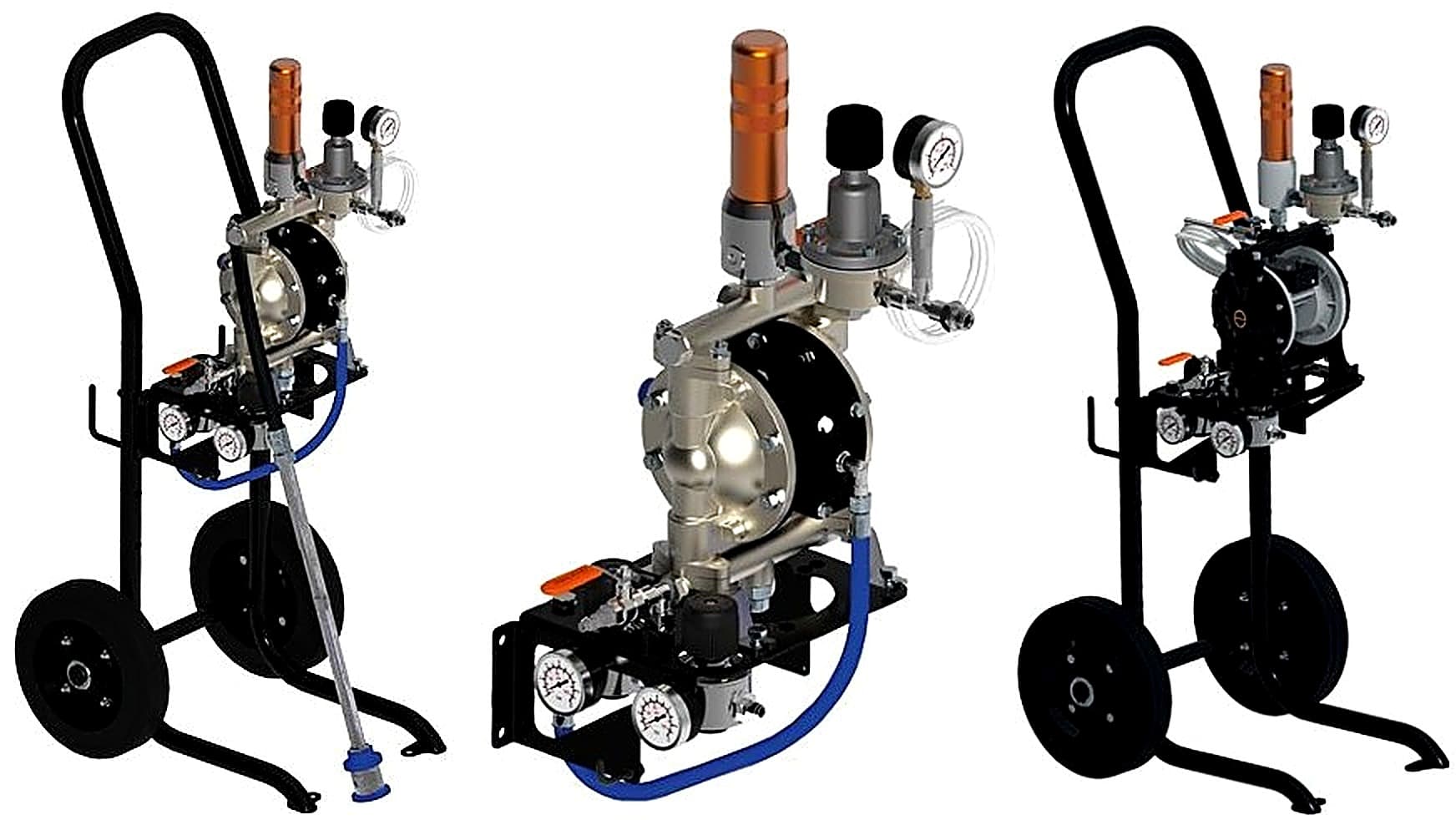

Key-Features_7 1) Anti-pulse chamber with fluid mesh filter fitted as standard ensures any debris in the paint is filtered before supply to the spray gun2) Fluid regulator included as standard for consistent control of fluid flow and pressure

3) Up to 40lpm (10.6gpm) ensures high fluid circulation to keep paint homogenous

4) Rugged stainless steel and aluminium pump construction to handle the most common automotive, industrial and marine paints

5) Aerospace grade aluminium change over valve uses metal on metal technology to prevent sticking

6) Air pressure regulator for regulating atomizing air to spray gun

7) Main system air inlet regulator pump regulator up to 7bar

8) Stable footprint of 543 x 527mm

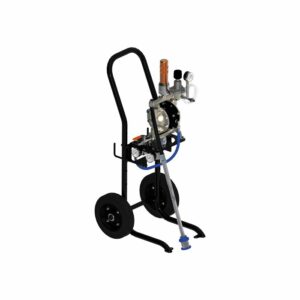

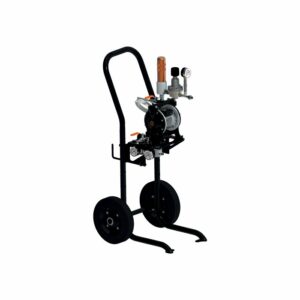

9) Each pump is fitted on to a rugged & ergonomic trolley with built-in hose & gun rack, for easy movement around site.

10) Heavy duty wheels for easy transportation

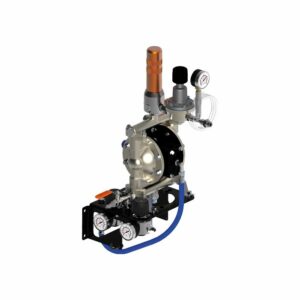

11) Unbolt the bracket and pump from the trolley to create a wall mounted version with suction hose – weighing up to 12.0kg.

	Kara 1-30	Kara 1-40	Kara 1-40A
Ratio	1 : 1	1 : 1	1 : 1
Maximum fluid particle size**	0.25mm (10mils)	0.25mm (10mils)	0.25mm (10mils)
Fluid temperature range	4.4 – 60°C	4.4 – 60°C	4.4 – 60°C
Fluid inlet size	1/2” BSP Male	1/2” BSP Male	1/2” BSP Male
Fluid outlet size	3/8” BSP Male	3/8” BSP Male	3/8” BSP Male
Compatible Products that can be pumped	Solvent and waterbased products	Solvent and waterbased products	Abrasive, solvent and waterbased products
COMPOSITION OF PARTS IN CONTACT WITH PRODUCT (WET)
Seats	Stainless Steel	Polypropylene	Stainless Steel
Balls	Stainless Steel	PTFE	Stainless Steel
Diaphragm	Polyethylene	PTFE	PTFE
Pump Body / Cylinder Housing	Polyethylene / Aluminium	PTFE / Aluminium	PTFE / Aluminium
Centre Section	–	–	–
Packing Kit (Top)	–	–	–
Packing Kit (Bottom)	–	–	–
EXTERNAL PUMP PARTS (DRY)
Pump Body / Cylinder Housing	Polyamide / Aluminium	Polyamide / Aluminium	Polyamide / Aluminium
AIR
Air Pressure Operating Range	1-6bar	1-7bar	1-7bar
Air Consumption at 3 bar & 7.5 CPM	1.8lpm	–	–
Air Consumption at 3 bar & 16 CPM	–	7.92lpm	7.92lpm
Maximum Air Inlet Pressure	6bar	7bar	7bar
Air Inlet	1/4” BSP Female	1/4” BSP Female	1/4” BSP Female
Air Exhaust / Silencer Port	1/2” BSP Female	1/2” BSP Female	1/2” BSP Female
Compressor Requirements (Minimum)	Contact Elcometer	Contact Elcometer	Contact Elcometer
Ambient Air Temperature Operating Range	4.4 – 60°C	4.4 – 60°C	4.4 – 60°C
FLUID / PRODUCT
Maximum Fluid Outlet Working Pressure	6bar	7bar	7bar
Product Output per Cycle	80 cc	165 cc	165 cc
Maximum Free Flow	30 lpm	40 lpm	40 lpm
Free Flow Delivery @ 60 CPM*	4.8 lpm	10 lpm	10 lpm
DIMENSIONS
Weight (Pump only)	3.3 kg	4.6kg	4.8kg
Weight (Wall Mount with Suction Hose)	10.5kg	11.8kg	12kg
Weight (Cart Mount with Suction Hose)	21.7kg	23kg	23.2kg
Weight (Wall Mount with Hopper)	10.6kg	11.9kg	12.1kg
Weight (Cart Mount with Hopper)	21.8kg	23.1kg	23.3kg
Dimensions (Cart Mount)	439 x 498 x 1000mm	439 x 501 x 1015mm	439 x 501 x 1015mm
Dimensions (Wall Mount)	328 x 331 x 563mm	333 x 441 x 630mm	333 x 441 x 630mm
