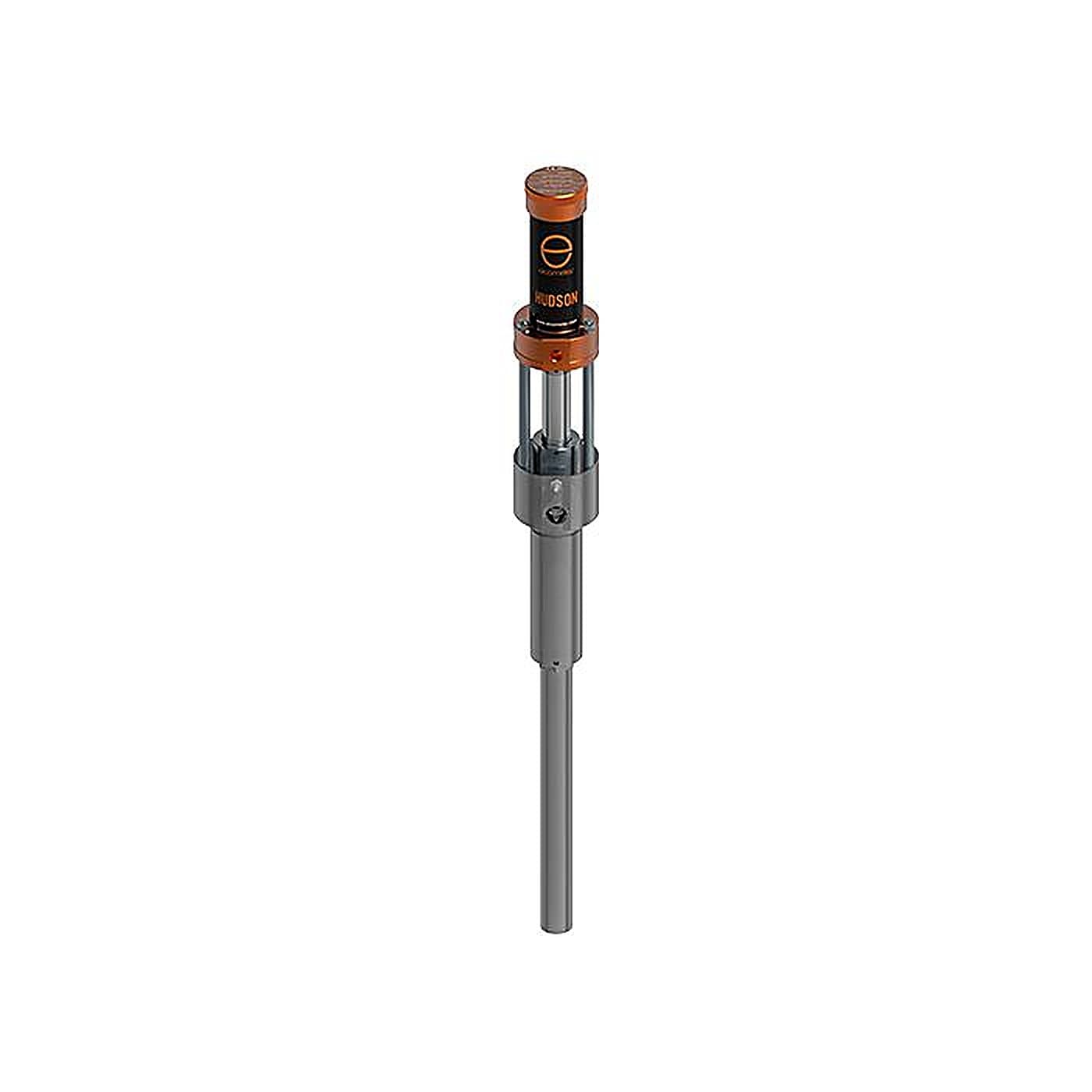

Elcometer Hudson Transfer Pumps
Product Description
The Elcometer HUDSON is a stainless steel piston transfer pump engineered to transfer solvent and water based fluids with a particle size of up to 5mm.
Designed to handle a broad range of water and solvent based materials, from hot to high viscous fluids or corrosive liquids, the Elcometer HUDSON’s high flow rate and immersed inlet makes it ideal for priming fluids.
Powerful performance
With up to 60 litres per minute maximum free flow, the Elcometer Hudson is the ideal stick pump to transfer most types of hot or cold, viscous or corrosive liquids.
Durable and hardwearing
The Elcometer Hudson is a very low maintenance pump with hardwearing components such as the PTFE carbon and stainless steel packing seal kit, making it incredibly durable and long lasting.
Efficient
Designed with low air consumption, the Elcometer Hudson helps to lower expensive compressor usage costs.
Safe
The Elcometer Hudson conforms to ATEX Zone 2 ensuring it is safe for use in potentially hazardous Zone 2 areas.
Key Features
1) Low air consumption air motor to reduce compressor costs
2) Durable stainless steel piston rod
3) Integrated wet cup to prevent moisture ingress penetrating fluid
4) Easy to add Throat Seal Liquid
5) Durable PTFE carbon & stainless steel packing seal kit with most bung adaptors
6) 1/2″ High Flow Fluid Outlet
7) Stainless steel ball and seat prevents wear when using corrosive fluids
8) 1″ BSP cylinder diameter compatible
9) Lightweight 6.5kg short and 7kg long, making it easier for manual handling
10) Removable cylinder housing to quickly adapt from using large scale drums to smaller vessels
11) Suitable for use with hot or cold fluids 4.4ºC – 60ºC
12) Available with 200 litre drum lid and rotary agitator
Specifications
| HUDSON 60 SHORT | HUDSON 60 LONG | |||
| Shaft Length | 488.75mm | 867.25mm | ||
| Ratio | 1 : 1 | |||
| Maximum fluid particle size** | 5mm | |||
| Fluid temperature range | 4.4 – 60°C | |||
| Fluid inlet size | 1” BSP Female | |||
| Fluid outlet size | 1/2” BSP Male | |||
| Compatible Products that can be pumped | Solvent, waterbased and corrosive products | |||
| COMPOSITION OF PARTS IN CONTACT WITH PRODUCT (WET) | ||||
| Top Valve | Stainless Steel | |||
| Bottom Valve | Stainless Steel | |||
| Pump Body / Cylinder Housing | Stainless Steel | |||
| Packing Kit (Top) | PTFE Carbon/Stainless Steel | |||
| Packing Kit (Bottom) | PTFE | |||
| EXTERNAL PUMP PARTS (DRY) | ||||
| Pump Body / Cylinder Housing | Stainless Steel/ Anodised Aluminium | |||
| AIR | ||||
| Air Pressure Operating Range | 1-7bar | |||
| Air Consumption at 3 bar & 7.5 CPM | 3.75lpm | |||
| Air Consumption at 3 bar & 16 CPM | 8.0lpm | |||
| Maximum Air Inlet Pressure | 7bar | |||
| Air Inlet | 1/4” BSP Female | |||
| Air Exhaust / Silencer Port | 2 x ∅6mm (2 x ∅0.23″) | |||
| Ambient Air Temperature Operating Range | 4.4 – 60°C | |||
| Compressor Requirements (Minimum) | 1.25lpm @ 1 bar | |||
| FLUID / PRODUCT | ||||
| Maximum Fluid Outlet Working Pressure | 7bar | |||
| Stroke Length | 85mm | |||
| Product Output per Cycle | 170 cc | |||
| Maximum Free Flow | 60lpm | |||
| Free Flow Delivery @ 60 CPM* | 15lpm | |||
| DIMENSIONS | ||||
| Weight (Pump only) | 6.5kg | 7.0kg | ||
| Dimensions | 97 x 88 x 877mm | 97 x 88 x 1256mm | ||
Data Sheet
Part Numbers
 |

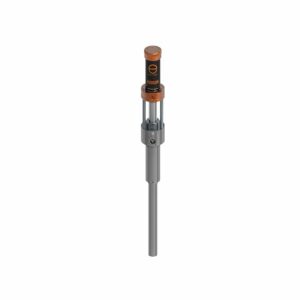

Elcometer Hudson 60 Stainless Steel Piston Transfer Pump – Short |
| Part Number : PTP160SAS | |
|
|
Elcometer Hudson 60 Stainless Steel Piston Transfer Pump – Long |
| Part Number : PTP160LAS | |
 |
Elcometer 200 Drum Cover complete with Elcometer Hudson 60 Stainless Steel Piston Transfer Pump – Long |
| Part Number : PSP160LAS-C | |
|
|
Elcometer 200 Drum Cover complete with Elcometer Hudson 60 Stainless Steel Piston Transfer Pump – Long & Rotary Agitator |
| Part Number : PSP160LAS-C-RA | |
Accessories
| Anti-static Air Hose – 6m Ø 8x15mm | ||
 |
Part Number: | PT56414024 |
| Anti-static Air Hose – 11m Ø 8x15mm | ||
|
|
Part Number: | PT56414025 |
| Anti-static Air Hose – 16m Ø 8x15mm | ||
|
|
Part Number: | PT56414027 |
| Anti-static Air Hose – 26m Ø 8x15mm | ||
|
|
Part Number: | PT56414026 |
| 1.8m Covered Anti-Static Air & Nylon Product Hose | ||
 |
Part Number: | PT56414130 |
| 5m Covered Anti-Static Air & Nylon Product Hose | ||
|
|
Part Number: | PT56414039 |
| 7.5m Covered Anti-Static Air & Nylon Product Hose | ||
|
|
Part Number: | PT56414044 |
| 10m Covered Anti-Static Air & Nylon Product Hose | ||
|
|
Part Number: | PT56414040 |
| 15m Covered Anti-Static Air & Nylon Product Hose | ||
|
|
Part Number: | PT56414041 |
| 20m Covered Anti-Static Air & Nylon Product Hose | ||
|
|
Part Number: | PT56414042 |
| Anti-static Air Hose – 21m Ø 8x15mm | ||
|
|
Part Number: | PT56414028 |
| 6m Thermo Rubber Product Hose with 3/8″ Female Connection | ||
 |
Part Number: | PT56414116 |
| 11m Thermo Rubber Product Hose with 3/8″ Female Connection | ||
|
|
Part Number: | PT56414117 |
| 16m Thermo Rubber Product Hose with 3/8″ Female Connection | ||
|
|
Part Number: | PT56414115 |
| 21m Thermo Rubber, ID: 8mm x OD: 16mm with 3/8″ Female Connection | ||
 |
Part Number: | PT56414118 |
| 26m Thermo Rubber, ID: 8mm x OD: 16mm with 3/8″ Female Connection | ||
|
|
Part Number: | PT56414119 |
