Elcometer BALTIC Air Assisted Airless Pumps
Product Description
The Elcometer Baltic Air Assisted Airless Pumps are ideal for wood workshops or metal fabricators requiring a high quality finish at fast application rates.
Ideal for wood & metal workshops the Elcometer Baltic is an air assisted airless (mix) pump designed to be durable and easy to maintain, engineered and manufactured with high quality components such as stainless steel balls and tungsten carbide seats.
Ergonomic and easy to use
Engineered to be simple to use, the Elcometer Baltic’s robust self-adjusting packing & seal kit, filter, balls and seats are fast to service or replace – reducing maintenance time.
High performance
The Elcometer Baltic is available with 15:1, 30:1 and 32:1 ratios, allowing larger spray tips up to 0.45mm, better fan patterns, longer fluid hoses and less pulsing for a better finish.
Efficient and quiet
The low air consumption of the Elcometer Baltic helps to lower expensive compressor running costs, whilst the low noise makes it ideal for production lines.
Versatile
Choice of trolley or wall mounted with a suction hose or gravity fed hopper, pair with the Sagola Mini Xtreme Mix Spray Gun to suit your application.
Multiple particle filters within the system: in the suction hose, pump filter and on the spray gun.
Key Features
1) Low air consumption air motor, 31.12lpm maximum
2) Robust, easy to read gauges for both pump & spray gun
3) Precision pump & spray gun regulators
4) Anti-pulse chamber, compatible with waterborne & solvent based products, with stainless steel 80 mesh filter helps to prevent spray tip blockages and ensures smooth spraying
5) Easily accessible wet cup for throat seal pump liquid
6) Rugged, durable pump with tungsten carbide and stainless steel ball & seats and self-adjusting packings
7) Service the lower quickly using standard workshop tools
8) Stable, boltable footprint of 543mm x 527mm

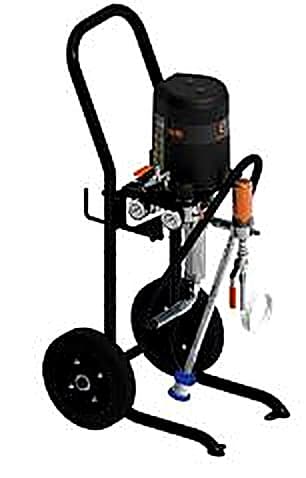

9) Each pump is fitted on to a rugged & ergonomic trolley with built-in hose & gun rack, for easy movement around site
Unbolt the bracket and pump from the trolley to create a wall mounted version with suction hose – weighing up to 12.3kg
Specifications
| BALTIC 15 | BALTIC 30 | BALTIC 32 | |
| Ratio | 15 : 1 | 30 : 1 | 32 : 1 |
| Maximum fluid particle size** | 0.25mm (10mils) | 0.25mm (10mils) | 0.25mm (10mils) |
| Fluid temperature range | 4.4 – 60°C | 4.4 – 60°C | 4.4 – 60°C |
| Fluid inlet size | 1/2” BSP Male | 1/2” BSP Male | 1/2” BSP Male |
| Fluid outlet size | 1/4” BSP Male | 1/4” BSP Male | 1/4” BSP Male |
| Compatible Products that can be pumped | Solvent and waterbased products | Solvent and waterbased products | Solvent and waterbased products |
| COMPOSITION OF PARTS IN CONTACT WITH PRODUCT (WET) | |||
| Seats | Polyamide | Polyamide | Polyamide |
| Balls | Stainless Steel | Stainless Steel | Stainless Steel |
| Pump Body / Cylinder Housing | Aluminium | Aluminium | Aluminium |
| Piston | Hard Chrome Stainless Steel | Hard Chrome Stainless Steel | Hard Chrome Stainless Steel |
| Packing Kit (Top & Bottom) | Polyamide | Polyamide | Polyamide |
| EXTERNAL PUMP PARTS (DRY) | |||
| Pump Body / Cylinder Housing | Aluminium | Aluminium | Aluminium |
| AIR | |||
| Air Pressure Operating Range | 1-7bar | 1-7bar | 1-7bar |
| Air consumption at 100bar (1450psi) & 6.5 CPM (BA32-BA15) 10 CPM (BA30) | 25.08lpm | 31.12lpm | 29.3lpm |
| Maximum Air Inlet Pressure | 7bar | 7bar | 7bar |
| Air Inlet | 1/4” BSP Female | 1/4” BSP Female | 1/4” BSP Female |
| Air Exhaust / Silencer Port | 1/4” BSP Female | 1/4” BSP Female | 1/4” BSP Female |
| Minimum compressor requirements at 100bar (1450psi) & 6.5 CPM (BA32-BA15) 10 CPM (BA30) | 25.08lpm | 31.12lpm | 29.3lpm |
| Ambient Air Temperature Operating Range | -10 – 60°C | -10 – 60°C | -10 – 60°C |
| FLUID / PRODUCT | |||
| Maximum Fluid Outlet Working Pressure | 91bar | 215bar | 226bar |
| Stroke Length | 60mm | 68mm | 68mm |
| Maximum Spray Tip Size | 0.45m | 0.33mm | 0.45m |
| Product Output per Cycle | 45 cc | 30 cc | 45 cc |
| Free Flow Delivery @ 60 CPM* | 2.7 lpm | 1.8 lpm | 2.7 lpm |
| DIMENSIONS | |||
| Weight (Pump only) | 9.8kg | 8.2kg | 10kg |
| Weight (Wall Mount with Suction Hose) | 12.1kg | 10.5kg | 12.3kg |
| Weight (Cart Mount with Suction Hose) | 23.3kg | 23kg | 23.5kg |
| Weight (Wall Mount with Hopper) | 12.2kg | 10.6kg | 12.4kg |
| Weight (Cart Mount with Hopper) | 23.4kg | 23.1kg | 23.6kg |
| Dimensions (Cart Mount) | 543 x 527 x 999mm | 543 x 527 x 999mm | 543 x 527 x 999mm |
| Dimensions (Wall Mount) | 543 x 359 x 516mm | 543 x 359 x 516mm | 543 x 359 x 516mm |
Data Sheet
Elcometer BALTIC Air Assisted Airless Pumps – Data Sheet
Elcometer-BALTIC-Air-Assisted-Airless-Pumps Data Sheet
Part Numbers
 | Elcometer Baltic 15 Air Assisted Airless Piston Spray Pump |
| Part Number : PSP15AAA-T | |
| Elcometer Baltic 30 Air Assisted Airless Piston Spray Pump |
| Part Number : PSP30AAA-T | |
| Elcometer Baltic 32 Air Assisted Airless Piston Spray Pump |
| Part Number : PSP32AAA-T | |
 | Elcometer Baltic 15 Air Assisted Airless Piston Spray Pump – Sagola Mini Xtreme Mix Spray Gun – 13/40 Fixed Spray Tip |
| Part Number : BA15-MXM-1340 | |
| Elcometer Baltic 15 Air Assisted Airless Piston Spray Pump – Sagola Mini Xtreme Mix Spray Gun – 11/40 Fixed Spray Tip |
| Part Number : BA15-MXM-1140 | |
| Elcometer Baltic 30 Air Assisted Airless Piston Spray Pump – Sagola Mini Xtreme Mix Spray Gun – 13/40 Fixed Spray Tip |
| Part Number : BA30-MXM-1340 | |
| Elcometer Baltic 30 Air Assisted Airless Piston Spray Pump – Sagola Mini Xtreme Mix Spray Gun – 11/40 Fixed Spray Tip |
| Part Number : BA30-MXM-1140 | |
| Elcometer Baltic 32 Air Assisted Airless Piston Spray Pump – Sagola Mini Xtreme Mix Spray Gun – 13/40 Fixed Spray Tip |
| Part Number : BA32-MXM-1340 | |
| Elcometer Baltic 32 Air Assisted Airless Piston Spray Pump – Sagola Mini Xtreme Mix Spray Gun – 11/40 Fixed Spray Tip |
| Part Number : BA32-MXM-1140 | |
Accessories
| Hopper Kit & Product Filter | ||
 | Part Number: | PT30090399 |
| Combined Air & Product Hose with Protective Cover; 7m | ||
 | Part Number: | PT56414036 |
| Combined Air & Product Hose with Protective Cover; 11m | ||
| Part Number: | PT56414037 |
| Sagola Mini Xtreme Mix with 8mm Quick Connect Air Coupling and 1/4″ Swivel Product Coupling, with Air Assisted Airless Spray Tip 11/40: 0.011″/0.28mm, 40 Degree | ||
 | Part Number: | PG35130202 |
| Sagola Mini Xtreme Mix with 8mm Quick Connect Air Coupling and 1/4″ Swivel Product Coupling, with Air Assisted Airless Spray Tip 13/40: 0.013″/0.33mm, 40 Degree | ||
| Part Number: | PG35130206 |
