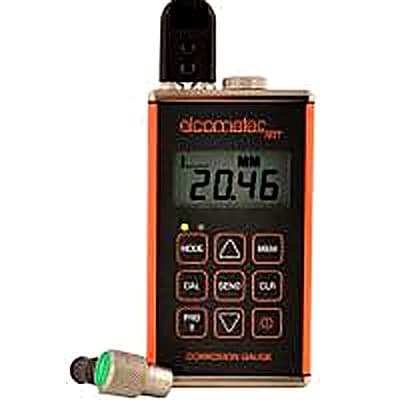

Elcometer NDT CG50DL Corrosion Ultrasonic Thickness Gauge - Discontinued

PLEASE NOTE: THIS PRODUCT HAS BEEN DISCONTINUED – Please contact us if you would like a recommendation of a unit to replace this model.



elcometer-ndt-cg50dl-corrosion-ultrasonic-thickness-gauge


Product Description



The Elcometer NDT CG50DL Corrosion Ultrasonic Thickness Gauge is an easy to use, versatile gauge, quickly calibrated on site by the user to give reliable, accurate thickness measurements on a wide variety of material substrates.Taking 16 readings per second the high speed scan mode allows the user to quickly scan an area of material for defects or to identify its thinnest point, ideal for pipelines or large test surfaces.The differential mode on the Elcometer NDT CG50DL Corrosion Ultrasonic Thickness Gauge handheld thickness gauge allows the user to select a nominal thickness value, the gauge will then display the positive or negative (±) difference from the nominal value entered.

The built-in minimal thickness alarm mode illuminates a red LED and an audible alarm sounds when a measurement falls below the user defined target value.The Elcometer NDT CG50DL Corrosion Ultrasonic Thickness Gauge offers full data logging and stores up to 1,000 readings. Complete with free data management software, readings can be directly downloaded into spreadsheets using the RS232 dataport, for full analysis and reporting.

Elcometer NDT CG50DL Corrosion Thickness Gauge Advantages

  • Multi calibration options: 1 point, 2 point and speed of sound for optimal accuracy
  • High speed scan mode: 16 readings per second
  • Differential and minimal thickness alarm modes
  • Data output and storage: 1,000 readings and wave forms
  • Wide range of interchangeable transducers
  • Easy to use menu structure
  • Tough, impact, water, dust & petroleum product resistant
  • Up to 200 hours battery life

Specifications

Elcometer NDT CG50DL Corrosion Ultrasonic Thickness Gauge – Specifications



Model & Part NumberCG50DL
Material thickness digits display •
Measurement Mode PE
Measurement Rate :Manual:4 readings per second
 Scan Mode:16 readings per second
Measuring Range 0.63 – 500mm
Measurement Accuracy±0.01mm
Measurement Resolution0.01mm
Velocity Calibration Range 1250 – 10,000m/s
Additional Features:
    High Speed scan mode •
    Differential mode •
    Minimum thickness alarm mode •
Data Logging 1,000 readings, sequential
Calibration Options single, two point & velocity
Transducer Probe Typedual element
Transducer Frequency Range 1 – 10MHz
V-path / dual path error correction automatic
Probe zero manual (via integrated probe disk)
Display 12.7mm (0.5 inch) high digits
Units (selectable) mm or inches
LED Backlight on / off / auto
Repeatability / Stability Indicator •
Battery Type 2 x AA alkaline
Battery Life (approximate) 200 hours
Low Battery Indicator •
Battery Save Mode auto
Operating Temperature-30 to 50ºC
Size (w x h x d) 63.5 x 114.3 x 31.5mm
Weight (including batteries) 284g
Aluminium case design•
with gasket sealed end caps,
waterproof membrane keypad
Transducer Connector Type LEMO
RS232 Interface Download to Computer

Elcometer NDT CG50DL Corrosion Ultrasonic Thickness Gauge Packing List:

  • Elcometer NDT CG50DLCorrosion Ultrasonic Thickness Gauge
  • Couplant
  • Carry case
  • User manual
  • Test certificate
  • 2 x AA batteries
  • Software
  • Transfer Cable
